Leica Disto Laser Measurers
Leica DISTO Laser Measure is the innovative laser measure range from Leica Geosystems. The Leica DISTO™ range is ideal for quick, easy and precise measurements of distances such as length and volumes with the press of a button, even in inaccessible places. The DISTO family will save valuable money and time as well as improve the accuracy of measurement on site. If you are looking for a laser measure that is highly accurate, has good range and high build quality then you will be sure to find the right device in the DISTO.
Leica Disto Accessories
Leica Disto D510 - Pro Kit
Package includes:

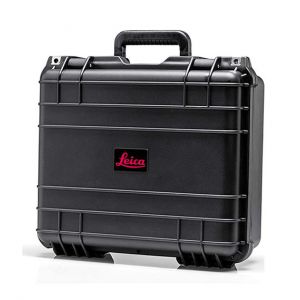

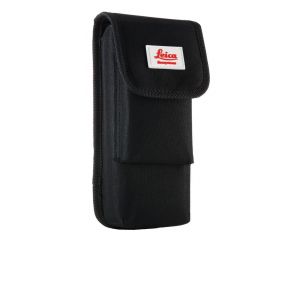

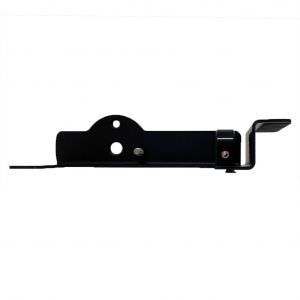

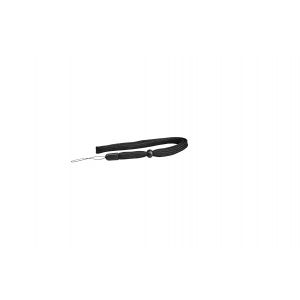

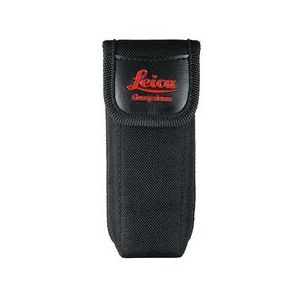

Leica DISTO™ D510, Holster, Hand loop, Batteries, Leica tripod adapter FTA360, Leica TRI 70 (6901211), Leica carrying case.
£644.00 + Vat

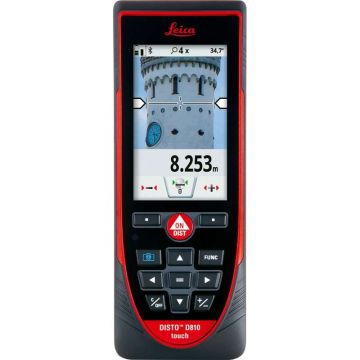

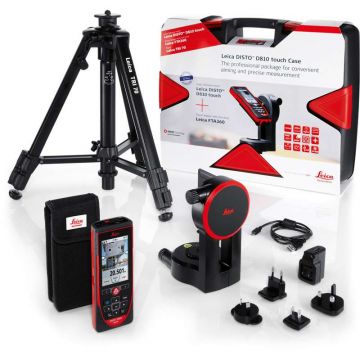

Leica DISTO D810 touch - Pro Kit
Package includes:

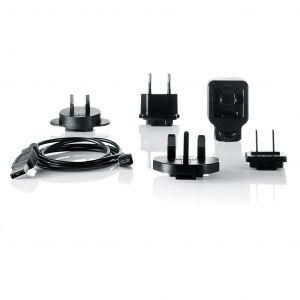

Leica DISTO™ D810 touch, Holster, Hand loop, USB charger incl. 4 plugs, Leica tripod adapter FTA360, Leica TRI 70, Leica carrying case.
£799.00 + Vat

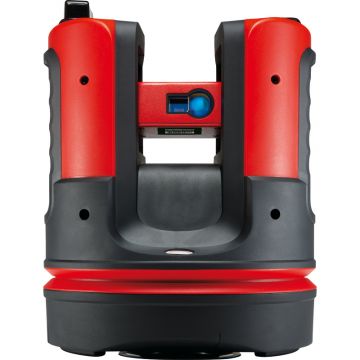

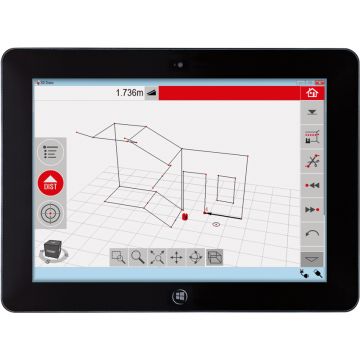

Leica Disto 3D Disto software for Windows
Upgrade your controller package for £400. Use your own Windows® device to operate the Leica 3D Disto. It controls the Leica 3D Disto, automatically carries out all complicated calculations and supplies the relevant information you need.
| Functions and Technical Specifications | ||||||||
 |
 |
 |
 |
 |
 |
|||
Leica Disto Sketch The Leica DISTO™ sketch app simplifies everyday measuring tasks, by allowing you to create a photo-referenced layout or sketch including distance measurements. The Leica DISTO™ sketch can be downloaded for free and allows you to create a sketch or photograph on your smartphone and then easily transfer the measurements from the Leica DISTO™ via Bluetooth® technology. This ensures that measurements are documented and can be sent to the office via e-mail. Or you can add a fully dimensioned sketch to your bid package to show your customers how real professionals measure. |
Leica Disto Sketch |
 |
|
|
|
|
 |
|
Accuracy (mm) / Range (m)The measuring accuracy (measured in mm) and measuring range (measured in m). |
Accuracy (mm) / Range (m) |
2mm • 40m
|
1.5mm • 60m
|
1mm • 100m
|
1mm • 200m
|
1mm • 200m
|
1mm • 300m
|
|

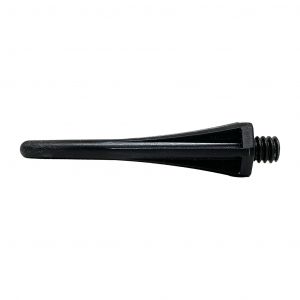

 Intelligent EndpieceThe endpiece is an integral part of the tool, connected to the circuit board. In the closed position the DISTO knows to measure from its base. Flip it open 90 degrees to align the base perfectly on an edge or corner. Flip it out all the way and you can accurately measure diagonals. |
Intelligent Endpiece |
|
|
|
|
|
|
|
 Smart Horizontal ModeThe desired horizontal distance is determined using the tilt measurement, even if the object cannot be directly targeted horizontally. This function is very helpful, e.g. if walls, hedges or people are between the instrument and the target. |
Smart Horizontal |
|
|
|
|
|
|
|
BluetoothSend measurements directly to your apps such as Leica Disto Sketch and Transfer using Bluetooth Smart. |
Bluetooth |
V4.0 Smart
|
V4.0 Smart
|
V4.0 Smart
|
V4.0 Smart
|
V4.0 Smart
|
V4.0 Smart
|
|
 Outdoor PointfinderThe onboard digital camera features a 4x digital zoom "point finder" that shows you where the dot is even if you can't see it with the naked eye. Put the crosshairs on the spot you are measuring to and hit the button. It's that simple. |
Outdoor Pointfinder |
|
|
|
|
|
|
|
Measure within PictureThe Measure in Picture (MIP) technology can determine the height, width, area, diameter, or circumference of an object in a picture taken by the Disto. Bracket your target using pointers on the touch screen to remotely measure the width of a second story window, the area of a billboard, or the diameter of an above-ground tank. |
Measure within Picture |
|
|
|
|
|
|
|
 Minimum/maximum measurementsThe maximum measurement is very helpful, e.g. for finding out the room diagonal. The minimum measurement can be used to measure at right angles to a wall. |
Min/Max Function |
|
|
|
|
|
|
|
 Area and volume measurementsWith only two or three measurements, you can quickly and precisely calculate the area of a ceiling, floor or wall, or the volume of a room. No need to note down the individual values! The result is calculated automatically and shown on the display. |
Area/Volume |
|
|
|
|
|
|
|
 Triangle and room angle functionThe triangle function helps you to calculate, quickly and efficiently, the area of a multicornered room. Divide the room into imaginary triangles. Using only three measurements, determine the area of each triangle, which you can add up cumulatively. Pressing a key gives you a detailed display of the room angle, so that you can e.g. quickly check whether it is a right angle. |
Triangle Room |
|
|
|
|
|
|
|
 Painter FunctionWith this function you can determine e.g. the total wall area of a room without having to note down any intermediate results. Simply measure the lengths of the walls, which you can add or subtract as required. Finally measure the room height, which is then automatically multiplied by the previously calculated value. |
Painter Function |
|
|
|
|
|
|
|
 Pythagoras FunctionUsing the tripod, you can measure distances indirectly, horizontally and vertically. The Leica DISTO™ calculates the result automatically for you from three measurements. Functions such as automatic minimum and maximum measurements help you to measure the right point. Partial heights, e.g. balcony or window heights, are determined by Pythagoras. |
Pythgoras Function |
|
|
|
|
|
|
|
 Trapezium FunctionThe Trapezium Function is useful for determining the length and slope of a roof section, and the area it covers. The DISTO uses the its internal tilt sensor to calculate the angle and the distance between the shots, which means you can measure roofs accurately from the ground. |
Trapezium Function |
|
|
|
|
|
|
|
 Sloped Object MeasurementWith this function, you can e.g. determine the roof slope of a house, even from a long distance away. To do this you take two distance measurements and the Leica DISTO™ determines the tilt at the same time. Additional detailed information, e.g. the distances and the inclination between the measured points, is also provided. |
Sloped Object Measurement |
|
|
|
|
|
|
|
 Height TrackingYou can determine the heights of buildings or trees that have no suitable reflective points by using the height tracking function. Target with the Pointfinder on the bottom point of the height to be measured and take a measurement. Then target on the top point of the object. The display then shows the height. |
Height Tracking |
|
|
|
|
|
|
|
 Height Profile MeasurementsTarget the device on a known reference mark and then measure the height differences of other points relative to this. If the measured points are taken all in one direction the profile of the ground can be determined from the measured horizontal distances and the height differences. |
Height Profile Tracking |
|
|
|
|
|
|
|
 TouchscreenThe extremely responsive touchscreen is easy to use and makes for very intuitive operation. All features are quickly and easily accessed using standard gestures including swipe and zoom using fingers. The touchscreen also allows for measurements to be taken directly. |
Touchscreen |
|
|
|
|
|
|
|
 Tilt MeasurementThe tilt sensors in the Leica DISTO™s can measure inclinations up to ±45°, or even have a measurement range of 360°. This means you can also measure inclinations over your head. This is particularly interesting for people who wish to determine roof slopes. |
Tilt Measurement |
|
|
|
360°
|
360°
|
360°
|
|
Add/SubtractIt's not always so simple as taking one shot to get the measurement you need. Sometimes its handy to add multiple shots together, or subtract a negative space from a measurement. As you use the Add/Subtract function, the final result is displayed in the main line, and the last measurement taken is shown above. |
Add/Subtract |
|
|
|
|
|
|
|
MemoryStore measurements and images with measurements associated with them. |
Memory |
|
|
|
|
|
|
|

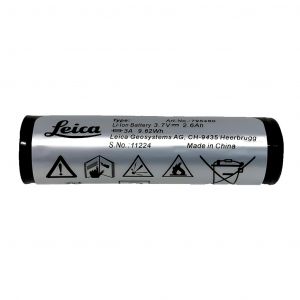

Rechargeable BatteryThis DISTO will take approximately 4000 measurments per charge. |
Rechargeable Battery |
|
|
|
|
|
|
|
IP RatingThe Ingress Protection (IP) rating was developed by the European Committee for Electrotechnical Standardization (CENELEC) to create a standard of toughness. The first number, in this case a 5 out of 6, is the rating for protection against dust. The second number, in this case a 4 out of 8, is the rating for protection against liquids. |
IP Rating |
IP54
dust and splash water |
IP54
dust and splash water |
IP54
dust and splash water |
IP65
water jet and dust-tight |
IP54
dust and splash water |
IP54
dust and splash water |
|
CompassThe compass is useful for answering questions like, "Is this the north elevation or the west elevation?" or "Which way am I facing?" |
Compass |
|
|
|
|
|
|
|
 Personalised FavouritesWith over 20 functions, chances are you are going to use one or two more than the rest. This Favourites function lets you bookmark your most-used functions on the tabs at the bottom of the touch screen. |
Personalised Favourites |
|
|
|
|
|
|
|
|
Point-to-Point measurements |
|
|
|
|
|
|
|
|
Smart angle measurement |
|
|
|
|
|
|
|
|
Smart area measurement |
|
|
|
|
|
|
|
|
DXF data capture |
|
|
|
|
|
|
|
|
WLAN data transmission |
|
|
|
|
|
|
|
