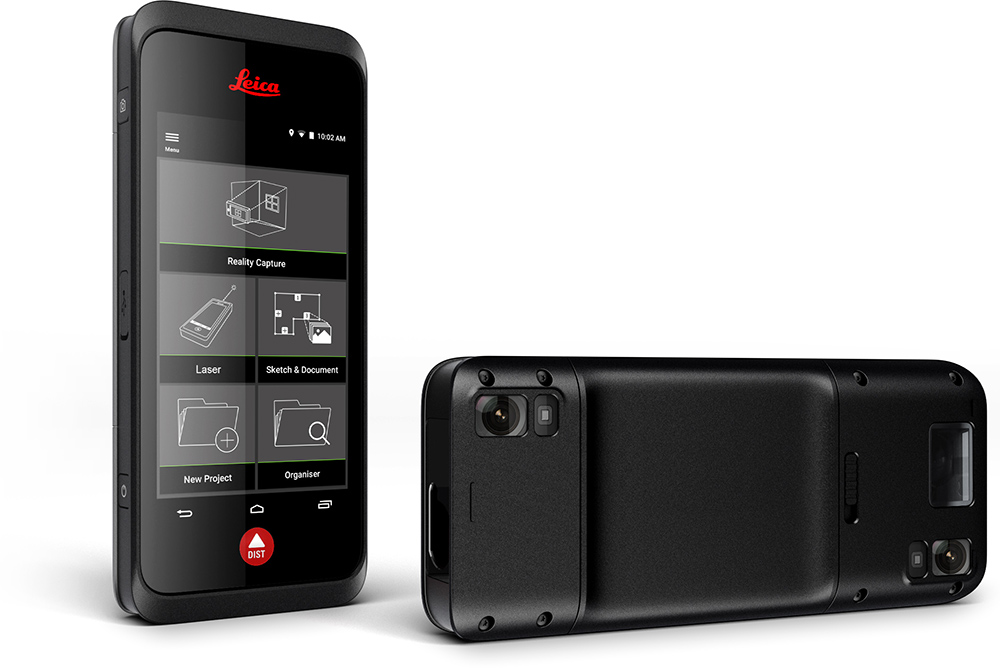

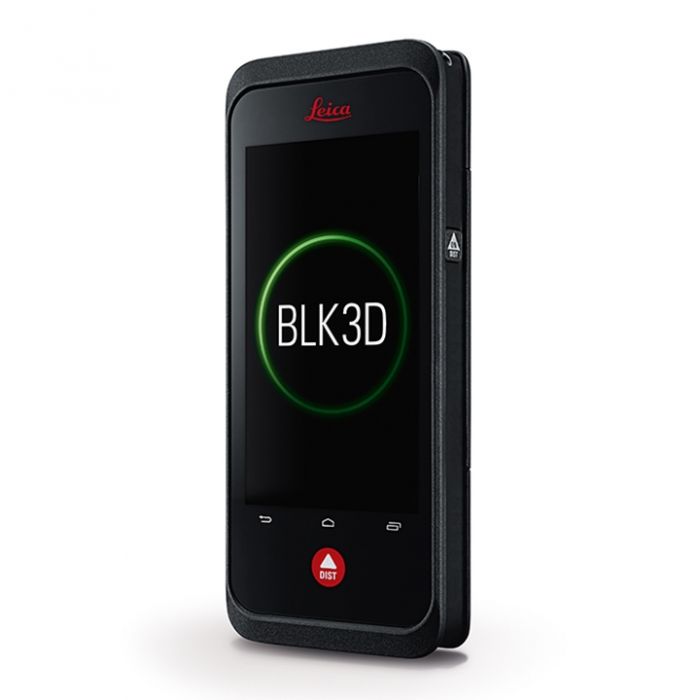

Leica BLK3D

Real-time, professional grade, in-picture 3D measurement

The Leica BLK3D is a real-time, in-picture 3D measurement solution. By combining measurement sensors, software, and on-device edge data processing capabilities, the Leica BLK3D makes in-picture measurements with professional-grade accuracy in real-time possible. Every image captured is a complete and precise 3D measurement record.

Its edge computing capabilities eliminate the need for network connections and cloud services, ensuring professionals can make faster decisions within their daily workflows – whether measuring inaccessible locations, creating floor plans, estimating building installations, documenting construction site progress or creating measurable, as-built documentation.

Leica BLK3D Real-time, professional grade, in-picture 3D measurement

Call or email for price

Tel: 01480 404888

Email: sales@sccssurvey.co.uk

Real-time, professional grade, in-picture 3D measurement

The Leica BLK3D is a real-time, in-picture 3D measurement solution. By combining measurement sensors, software, and on-device edge data processing capabilities, the Leica BLK3D makes in-picture measurements with professional-grade accuracy in real-time possible. Every image captured is a complete and precise 3D measurement record.

Its edge computing capabilities eliminate the need for network connections and cloud services, ensuring professionals can make faster decisions within their daily workflows – whether measuring inaccessible locations, creating floor plans, estimating building installations, documenting construction site progress or creating measurable, as-built documentation.

Leica BLK3D Real-time, professional grade, in-picture 3D measurement

Credit Card Logos

Free Delivery

Send to a Colleague

Delivery and Returns

Price Match Promise

Delivery and Returns

Leica
Description

Take a picture. Measure anything.
The BLK3D captures images and places precise measurements at your fingertips. Share images and measurements in multiple formats.

The art of photogrammetry. Simplified.
Un-matched combination of a calibrated stereo-camera, advanced algorithms and real-time edge computing fused with leading Electronic Distance Measurement (EDM) technology.

Access projects. Anywhere, anytime.
Measure in your image – on the handheld imager, on the desktop, on-site or in the office.

Working with digital floorplans.
Create floorplans and import existing ones. Add measurable images. Document construction progress with multiple images over time.

New dimensions for 2D pictures.
The BLK3D creates images that contain precise three-dimensional measurements.

Progressive project documentation for AEC.
Capture critical moments throughout the life of a building.

Object detection and snapping.
Auto-Snapping uses computer vision technologies to select the right points for your measurements.

Store. Organize. Share.
Store your measurable images on the device and on desktop. Organize your projects by tagging measurable images with searchable keywords for easy recall and share them in multiple formats.

BLK3D ACCURACY

The BLK3D represents a new way to capture and document reality by combining measurement sensors, software, and on-device data processing. Its integrated stereo-camera captures images that provide a complete 3D record, with:

  • EDM accuracy of 1mm*
  • 2D in-picture accuracy of +/- 3mm*
  • 3D in-picture accuracy of +/- 6mm*

BLK3D Accuracy

*Measurement precision, accuracy, and reliability are dependent upon various factors including distance and position to object, baseline length, texture of object, light conditions, ambient temperature, calibration etc. Figures quoted assume normal to favourable conditions at close range and are subject to change.

BLK3D Product Specifications
Design & Physical Dimensions
Material Black anodized aluminium
Dimensions 180mm x 77mm x 27mm
Weight 480g
Connector USB-C
Display 5’’ HD IPS Capacitive Touch Display
P2P Support Quick Mount on Leica DST 360
Power
Battery Type Swappable, rechargeable Li-Ion battery
Capacity 14 Wh
Charging via USB-C connector or external charger
Environmental
Robustness Designed for any construction site
Operating Temperature -10°- +50°C
Imaging
Camera 2 x 10MP with 80°Field of View
Algorithms Advanced SGM algorithmic on-board (GPU) + EDM
Structure from Motion (SFM) algorithmic for poses and orientation
Operating System & Processors
Operating System Android 7 (Nougat) with GMS certification
CPU Qualcomm Snapdragon 820E (Quad Core @ 2.35 GHz)
Storage 64GB
RAM 4GB
Communication WLAN (5GHz), Bluetooth 4.1 and 2.1
Performance
Measurement Speed <1 sec
Range up to 20m (imaging); 250m (Electronic Laser Distance Measurement)

Additional Information
SKU BLK3D
Package Includes N/A
