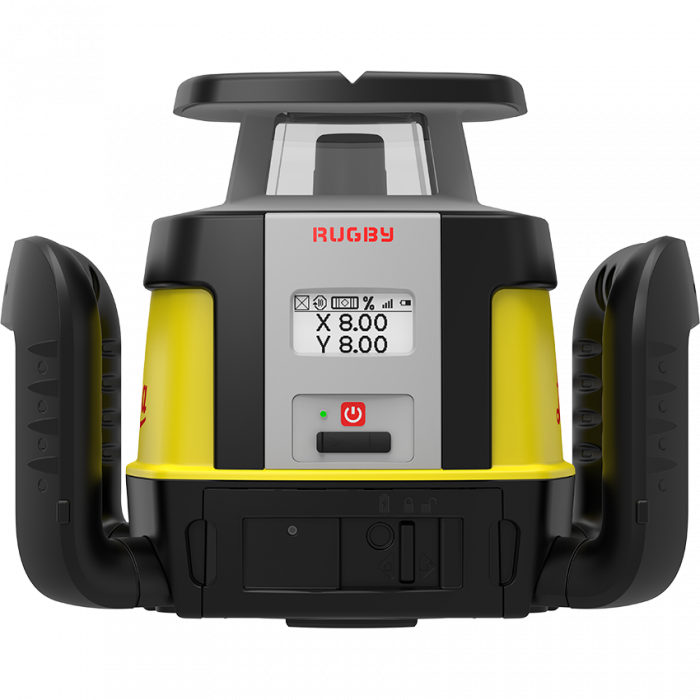

Leica Rugby CLX 700
Leica Rugby CLX 700
Get in touch with our experienced sales team to order or discuss any products
Tel: 01480 402250
Email: sales@sccssurvey.co.uk
Hire enquiries
Tel: 01480 402269
Email: hires.geo@sccssurvey.co.uk
The Right Choice for Every Application On Site
With the unique capability to adapt to any application needs through software upgrades, the Leica Rugby CLA is the first upgradable laser to maximised productivity and performance on-site. The upgrade options deliver the unmatched performance in any levelling, aligning and squaring tasks, making it a true all-rounder. With additional professional services such as repair and calibration, you can secure your laser’s exceptional performance for many years.
HORIZONTAL, VERTICAL & FULLY-AUTOMATIC SINGLE GRADE WITH DIAL-INAdding +-15% fully automatic grade functionality in second axis with a dial-in option, the upgrade delivers the most reliable performance in dual slope applications
Price includes
- Rugby CLX 700 Laser Level
- Leica Combo Digital RF
- Li-ion Battery Pack
- A100 Li-ion Battery Charger
- Carrying Case
- User Manual
- Calibration Certificate - 1 Year
| Leica Rugby CLA Upgrade options | ||
| Base unit |
 |
HORIZONTAL ONE-BUTTON LASER Use it as a simple to operate, one-button horizontal laser for concrete and formwork levelling, height checking and transferring, and land levelling applications. |
| CLX 250 |
 |
HORIZONTAL & SLOPE LASER With manual slope function, slope catch and slope lock, this upgrade makes slope applications, such as ramps and driveways a simple and efficient task |
| CLX 500 |
|
HORIZONTAL, VERTICAL & MANUAL SLOPE Enabling rotation vertically, the CLX 500 makes the Rugby CLA fit in batterboard, interior and other alignment applications |
| CLX 600 |
|
HORIZONTAL, VERTICAL & FULLY-AUTOMATIC SINGLE GRADE WITH DIAL-IN Adding +-15% fully automatic grade functionality in single axis with a dial-in option, the upgrade delivers the most reliable performance in single slope applications |
| CLX 700 |
|
HORIZONTAL, VERTICAL & FULLY-AUTOMATIC DUAL GRADE WITH DIAL-IN Adding +-15% fully automatic grade functionality in second axis with a dial-in option, the upgrade delivers the most reliable performance in dual slope applications |
| CLX 800 |
|
HORIZONTAL, VERTICAL & FULLY-AUTOMATIC DUAL GRADE WITH DIAL-IN AND MACHINE COMPATIBILITY With 20 rps head speed and multiple laser operation via one combo, this upgrade delivers the best results when working with machine guidance system |
 |
Site preparation Automated machine control systems for slope and flat work. |
 |
Grade checking Check grades easily and reliably. |
|
 |
Parking areas Single and dual slopes ensure proper drainage from parking areas. |
 |
Parking islands Set the forms for parking areas to match site requirements. |
|
 |
Slopes for ramps and driveways Dial-in or catch slope in single or dual axis. |
 |
Formwork verticality Vertical alignment of forms using slope match function. |
|
 |
Set out walls Align two points and mark position of wall using slope catch function. |
 |
Concrete levelling Check concrete level during the pour. |
|
 |
Formwork levelling Set and level concrete forms. |
 |
Batter board Align building axes using slope catch function. |
|
 |
Set out drywalls Align two points and mark position of drywall using slope catch function. |
 |
Level ceiling Check and level suspended ceiling. |
| Leica Rugby | CLH | CLA | CLI |
| Warranty | 5Y/2Y knockdown | 5Y/2Y knockdown | 5Y/2Y knockdown |
| Grade capability* (X/Y Axes) | 8% | 15% | 15% |
| Self-levelling accuracy** | ± 1.5 mm at 30 m (± 1/16" at 100 ft) |
± 1.5 mm at 30 m (± 1/16" at 100 ft) |
± 1.5 mm at 30 m (± 1/16" at 100 ft) |
| Self-levelling range | ± 6° | ± 6° | ± 6° |
| Operating range with Combo, RE 140/160 | 1350 m diameter | 1350 m diameter | 1350 m diameter |
| Remote range | 600 m diameter | 600 m diameter | 600 m diameter |
| Laser class | 1 | 2 | 1 |
| Environmental standard | IP68/MIL-STD-810G | IP68/MIL-STD-810G | IP68/MIL-STD-810G |
| Operating temperature | -20 °C to +50 °C -4 °F to +122°F |
-20 °C to +50 °C -4 °F to +122°F |
-20 °C to +50 °C -4 °F to +122°F |
| Storage temperature | -40 °C to +70 °C -40 °F to +158 °F |
-40 °C to +70 °C -40 °F to +158 °F |
-40 °C to +70 °C -40 °F to +158 °F |
| Rotation speed | 10, 15, 20 RPS | 0, 2, 5, 10, 15, 20 RPS | 10, 15, 20 RPS |
| Batteries (Li-Ion) | Li-Ion | Li-Ion | |
| Battery operating time** | 50 h | 50 h | 50 h |
| Battery charging | 5 h (full charge) 1 h fast charge = 8 h operating |
5 h (full charge) 1 h fast charge = 8 h operating |
5 h (full charge) 1 h fast charge = 8 h operating |
| Dimensions (H × W × D) | 230 mm / 9,1 in 296 mm / 11,7 in 212 mm / 8,3 in |
230 mm / 9,1 in 296 mm / 11,7 in 212 mm / 8,3 in |
230 mm / 9,1 in 296 mm / 11,7 in 212 mm / 8,3 in |
| Weight with batteries | 3.8 Kg / 8,3 lbs | 3.9 Kg / 8,5 lbs | 3.9 Kg / 8,5 lbs |
| * Up to 45° with adapter. ** Accuracy defined at 25°C (77°F) battery life depending upon environmental conditions. All specifications are depending on activated functionality. | |||
| LEICA COMBO (RECEIVER/REMOTE) | |
| Warranty | 3Y |
| Anti-Strobe |  |
| Working range - Receiver | 1350 m / 4430 ft (diameter) |
| Working range - Remote | 600 m / 1969 ft (diameter) |
| Detection window | 120 mm /4.7 in |
| Digital read out | |
| Offset | |
| Variable detection window length | |
| Audio volumes | 4 (including mute) |
| Detection bandwidth | 0.5, 1, 2, 5 mm |
| Environmental standard | IP67 |
| Batteries (li-ion) / Battery operating time** | Li-Ion 3.7V / 50 h |
| Battery charging | 5 h (full charge) 1 h (fast charge - 8 h operating) |
| Rechargeable battery / charging option with power bank (USB-C) | |
| Operating temperature | -20°C to +50°C, -4°F to +122°F |
| Dimensions (H × W × D) | 205 mm/8,1 in, 86 mm/3,4 in, 32 mm/1.2 in |
| Weight with batteries | 0.4 Kg / 0.9 lbs |
| ** Defined at 25°C (77°F) battery life depending upon environmental conditions. All specifications are depending on activated functionality. | |
| SKU | Leica Rugby CLX 700 |
|---|---|
| MPN | 6012284 |
