Upgradable Lasers

Leica Rugby CLH simplicity allows effortless use of the capabilities of the laser system. It saves time by simplifying applications and making you more productive. Its robust design secures measurement stability and accuracy for your daily tasks. The handle is fixed to the base with special sockets that feature high rigidity and provide a strong mount to the base. The upgrade options allow for maximised performance in all levelling applications. With the unique capability to adapt to any application needs through software upgrades, the Leica Rugby CLA is the first upgradable laser to maximised productivity and performance on-site. The upgrade options deliver the unmatched performance in any levelling, aligning and squaring tasks, making it a true all-rounder. With additional professional services such as repair and calibration, you can secure your laser’s exceptional performance for many years.

5 Item(s)

Set Descending Direction
per page

Grid  List

5 Item(s)

Set Descending Direction
per page

Grid  List

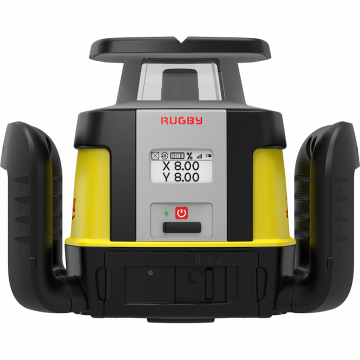

Leica Rugby CLH Upgrade options
Base unit Leica Rugby CLH Base unit HORIZONTAL ONE-BUTTON LASER
Use it as a simple to operate, ideal for concrete and formwork levelling, height checking and transferring, and land levelling applications.
CLX 200 Leica Rugby CLX 200 HORIZONTAL & SLOPE
With manual slope function, slope catch and slope lock, this upgrade makes slope applications, such as ramps and driveways a simple and efficient task
CLX 300 Leica Rugby CLX 300 HORIZONTAL & SINGLE GRADE WITH DIAL-IN
Adding +-8% semi-automatic grade functionality in single axis with a dial-in option, the upgrade delivers a solid performance in single slope applications
CLX 400 Leica Rugby CLX 400 HORIZONTAL & DUAL GRADE WITH DIAL-IN
Adding +-8% semi-automatic grade functionality in second axis with a dial-in option, the upgrade delivers a solid performance in dual slope applications

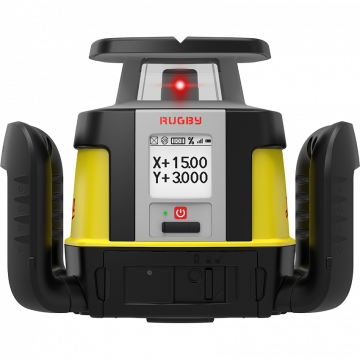

Leica Rugby CLA Upgrade options
Base unit Leica Rugby CLX 300 HORIZONTAL ONE-BUTTON LASER
Use it as a simple to operate, one-button horizontal laser for concrete and formwork levelling, height checking and transferring, and land levelling applications.

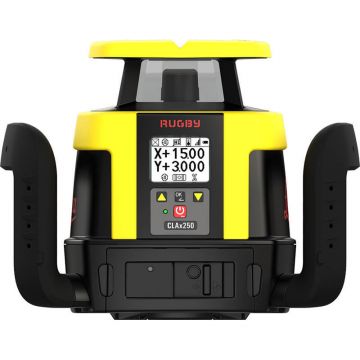

CLX 250 Leica Rugby CLX 250 HORIZONTAL & SLOPE LASER
With manual slope function, slope catch and slope lock, this upgrade makes slope applications, such as ramps and driveways a simple and efficient task
CLX 500 Leica Rugby CLX 500 HORIZONTAL, VERTICAL & MANUAL SLOPE
Enabling rotation vertically, the CLX 500 makes the Rugby CLA fit in batterboard, interior and other alignment applications
CLX 600 Leica Rugby CLX 600 HORIZONTAL, VERTICAL & FULLY-AUTOMATIC SINGLE GRADE WITH DIAL-IN
Adding +-15% fully automatic grade functionality in single axis with a dial-in option, the upgrade delivers the most reliable performance in single slope applications
CLX 700 Leica Rugby CLX 700 HORIZONTAL, VERTICAL & FULLY-AUTOMATIC DUAL GRADE WITH DIAL-IN
Adding +-15% fully automatic grade functionality in second axis with a dial-in option, the upgrade delivers the most reliable performance in dual slope applications
CLX 800 Leica Rugby CLX 800 HORIZONTAL, VERTICAL & FULLY-AUTOMATIC DUAL GRADE WITH DIAL-IN AND MACHINE COMPATIBILITY
With 20 rps head speed and multiple laser operation via one combo, this upgrade delivers the best results when working with machine guidance system

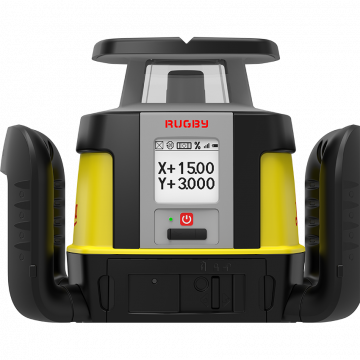

Leica Rugby CLI Upgrade options
Base unit Leica Rugby CLI Basic HORIZONTAL LASER WITH INVISIBLE BEAM
Ideal for: Concrete and formwork levelling, Land levelling, Rail Applications
CLX 900 Leica Rugby CLX 900 HORIZONTAL FULLY AUTOMATIC LASER WITH INVISIBLE BEAM
Horizontal, and fully automatic dial-in (DG & MC) grade laser wit invisible beam. + 20rps for usage with machine control, + Multiple pairing (max. 5 laser with one Combo).

Leica Rugby Upgradable Applications

Site preparation
Site preparation
Automated machine control systems for slope and flat work.
Grade checking
Grade checking
Check grades easily and reliably.
Parking areas
Parking areas
Single and dual slopes ensure proper drainage from parking areas.
Parking islands
Parking islands
Set the forms for parking areas to match site requirements.
Slopes for ramps and driveways
Slopes for ramps and driveways
Dial-in or catch slope in single or dual axis.
Formwork verticality
Formwork verticality
Vertical alignment of forms using slope match function.
Set out walls
Set out walls
Align two points and mark position of wall using slope catch function.
Concrete levelling
Concrete levelling
Check concrete level during the pour.
Formwork levelling
Formwork levelling
Set and level concrete forms.
Batter board
Batter board
Align building axes using slope catch function.
Set out drywalls
Set out drywalls
Align two points and mark position of drywall using slope catch function.
Level ceiling
Level ceiling
Check and level suspended ceiling.

Leica Rugby CLH CLA CLI
Warranty 5Y/2Y knockdown 5Y/2Y knockdown 5Y/2Y knockdown
Grade capability* (X/Y Axes) 8% 15% 15%
Self-levelling accuracy** ± 1.5 mm at 30 m
(± 1/16" at 100 ft)
± 1.5 mm at 30 m
(± 1/16" at 100 ft)
± 1.5 mm at 30 m
(± 1/16" at 100 ft)
Self-levelling range ± 6° ± 6° ± 6°
Operating range with Combo, RE 140/160 1350 m diameter 1350 m diameter 1350 m diameter
Remote range 600 m diameter 600 m diameter 600 m diameter
Laser class 1 2 1
Environmental standard IP68/MIL-STD-810G IP68/MIL-STD-810G IP68/MIL-STD-810G
Operating temperature -20 °C to +50 °C
-4 °F to +122°F
-20 °C to +50 °C
-4 °F to +122°F
-20 °C to +50 °C
-4 °F to +122°F
Storage temperature -40 °C to +70 °C
-40 °F to +158 °F
-40 °C to +70 °C
-40 °F to +158 °F
-40 °C to +70 °C
-40 °F to +158 °F
Rotation speed 10, 15, 20 RPS 0, 2, 5, 10, 15, 20 RPS 10, 15, 20 RPS
Batteries (Li-Ion) Li-Ion Li-Ion
Battery operating time** 50 h 50 h 50 h
Battery charging 5 h (full charge)
1 h fast charge = 8 h operating
5 h (full charge)
1 h fast charge = 8 h operating
5 h (full charge)
1 h fast charge = 8 h operating
Dimensions (H × W × D) 230 mm / 9,1 in
296 mm / 11,7 in
212 mm / 8,3 in
230 mm / 9,1 in
296 mm / 11,7 in
212 mm / 8,3 in
230 mm / 9,1 in
296 mm / 11,7 in
212 mm / 8,3 in
Weight with batteries 3.8 Kg / 8,3 lbs 3.9 Kg / 8,5 lbs 3.9 Kg / 8,5 lbs
* Up to 45° with adapter. ** Accuracy defined at 25°C (77°F) battery life depending upon environmental conditions. All specifications are depending on activated functionality.

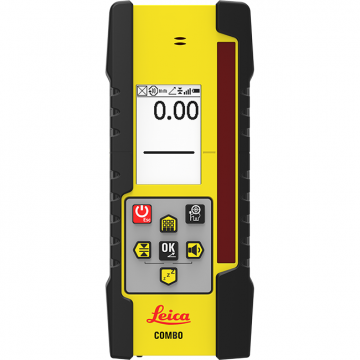

LEICA COMBO (RECEIVER/REMOTE)
Warranty 3Y
Anti-Strobe Yes
Working range - Receiver 1350 m / 4430 ft (diameter)
Working range - Remote 600 m / 1969 ft (diameter)
Detection window 120 mm /4.7 in
Digital read out Yes
Offset Yes
Variable detection window length Yes
Audio volumes 4 (including mute)
Detection bandwidth 0.5, 1, 2, 5 mm
Environmental standard IP67
Batteries (li-ion) / Battery operating time** Li-Ion 3.7V / 50 h
Battery charging 5 h (full charge) 1 h (fast charge - 8 h operating)
Rechargeable battery / charging option with power bank (USB-C) Yes
Operating temperature -20°C to +50°C, -4°F to +122°F
Dimensions (H × W × D) 205 mm/8,1 in, 86 mm/3,4 in, 32 mm/1.2 in
Weight with batteries 0.4 Kg / 0.9 lbs
** Defined at 25°C (77°F) battery life depending upon environmental conditions. All specifications are depending on activated functionality.
