Digital Levels

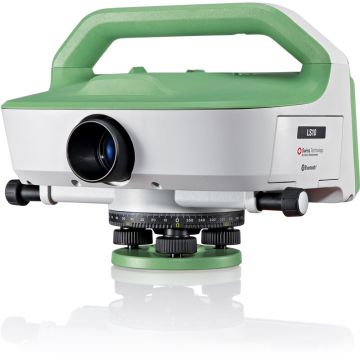

Leica digital levels improve standards for levelling on construction sites and general surveying tasks. They are simple to use, take measurements quickly, and minimise human error, while the integrated programs enhance levelling work. Experience shows that with a digital level there is up to 50% time saving when compared with conventional levels. The digital surveying levels we stock and supply include the Leica Sprinter 50 which is easy to use and comes with digital height reading, the Sprinter 150 which comes with additional functions and the Sprinter 150M & 250M with memory for advanced work. We also have the Leica LS10 & LS15 which are the industry leading in surveying accuracy.

6 Item(s)

Set Descending Direction
per page

Grid  List

6 Item(s)

Set Descending Direction
per page

Grid  List

Digital Surveying Levels

Electronic & Digital Level Technical Information
  Sprinter 50 Sprinter 150 Sprinter 150M Sprinter 250M DNA10 DNA03
Height Accuracies Standard deviation height measurements per 1km double run (ISO 17123-2)
Electronic Measurement 2.0mm 1.5mm 1.5mm 1.0/0.7mm 0.9mm/1.5mm 0.3mm/1mm
Optical Measurement With standard E-scale/Numeral Staff: 2.5mm 2.0mm
Single Staff Reading Standard Deviation: 0.6mm (electronic), 1.2mm (optical) at 30m 0.9mm/1.5mm 0.3mm/1mm
Distance Accuracies Standard deviation distance measurement 10mm for D < 10m and (Distance in m x 0.001) for D > 10m
Range 2-100m (electronic) (electr.) 1cm/20m (500ppm)
Time for Single Measurement < 3 seconds Typically 3 seconds
Compensator Magnet damped pendulum compensator (range +/- 10 min)
Telescope Magnification (optical) 24x
Data Storage   Up to 1000 points 6000
Dust/Water IP55 IP53
Power Supply AA dry cells (4 x LR6/AA/AM3 1.5V) Alkaline battery 6x LR6/AA/ AM3, 1.5V
Weight < 2.5kg < 2.8kg


Leica Sprinter Series.

Each of the Leica Sprinter Levels offers a complete solution for the construction environment. The simple to use interface offers a friendly menu system and measurements are taken with the press on the red button. The Leica Sprinter is highly accurate and only requires simple focusing on the staff, as an optical level and even operates in low light conditions. The results are shown on the LCD display, negating the need for optical reading and lowering the chance for errors and increasing productivity.

The Leica Sprinter 150 offers automatic height results. By entering in the benchmark and measuring the backsight and foresight an instant result will be displayed. Continuous measurements in tracking mode can be used for more accurate results.

The Leica Sprinters 150M and 250M offer advanced levelling and are able to store points (up to 1000) helping to avoid transcribing errors. This data can also be downloaded to any PC using a USB cable and with the free DataLoader program exports to Microsoft Excel are possible. Each Leica Sprinter is also able to calculate data. When using the correct application results such as line levelling, tracking and monitoring, cut and fill, and also delta height can be shown.

All of the Leica Sprinter Levels come with multilingual options and with only the press of one button, allow the user to choose from multiple languages, an added bonus when the crew speak a different one.

Leica-Sprinter-Brochure.pdf

Leica Sprinter Series comparison table - Technical Specification


Leica DNA Series.

Discover new possibilities with the Leica DNA Digital Levels and take advantage of added benefits which make daily work easier and compared to a conventional level, the Leica Digital Levels can give a 50% time saving. The Leica DNA Levels capture data much quicker as well as processing it quickly and more accurately.

The Leica DNA10 and DNA03 host complete range of applications from first order levelling tasks to the construction site. The liquid crystal display and alphanumerical keyboard with integrated measurement programs track the work done and make productivity much quicker. The keyboard specifically provides comfort and high efficiency when working. Each of the digital levels save the distance to the staff and with one simple press of a button calculates the height of the point. An easy to use measuring program allows for quick and reliable height difference measurements, stake outs and line levelling. The ‘point to point’ function continuously reads and gives height differences which are shown on the display allowing the data to be checked and monitored. Measurements are also free of earth curvature influence when the correction feature is enabled.

A practical advantage of the Leica DNA03 and DNA10 is the correction of collimation errors which can be done using the integrated check and adjust procedures. Different measurement modes are available including median, average or single out of calculations with definable repeated single and deviation distances. Definable formats for users can be stored for data output and export giving extra flexibility when processing to external PC software. Data can also be stored on the internal memory or on a removable PC card.

Leica Geo Office Tools is included with each level and allows for the setup and configuration of the digital instrument. It provides control for data exchange and can produce code and stake out height listings. The production of field book data exports is also possible with a user-defined output.

Both Leica DNA Digital Levels the DNA10 and DNA03 provide complete solutions for height determination jobs of construction and typographic surveys up to first order monitoring and levelling.

Leica-DNA-Digital-Brochure.pdf

Leica DNA Series comparison table - Technical Specification
