Construction Lasers
We supply a complete range of Exterior Laser Levels providing confidence and features needed, for any sized job across general construction and exterior levelling.
The new Leica Rugby 800 Series are flexible and work within the Leica iCON (Intelligent CONstruction) range. Each is protected to IP68 standard and is waterproof and dust proof. The Leica 800 laser levels are built to a very high standard give confidence when used in harsh environments. The Rugby 50 exterior laser is not only the simple to use but fully automatic, rugged, accurate and very affordable.
Other Exterior Laser Levels we supply include single grade laser levels such as the Leica Rugby 320SG, 260SG and 270SG and for duel grade requirements the 280DG and 410/420DG laser levels. Each offers Leica laser level is extremely accurate over extensive distances and makes use of many features which increases productivity.
Leica Rugby Laser Comparison
| Instrument | Range | Accuracy | Functionality | Rotation Speed | Laser Type | Battery & Life | Standard Rating |
| Rugby 610 | 600m | ± 2.2mm at 30m | Self-levelling horizontal, one button laser | 10rps | 635 nm (visible) | Alkaline 60hrs / Li-Ion 40 hrs | IP67 |
| Rugby 620 | 800m | ± 1.5 mm at 30 m | Self-levelling horizontal & manual slope in one axis | 10rps | 635 nm (visible) | Alkaline 60hrs / Li-Ion 40 hrs | IP67 |
| Rugby 640 | 600m | ± 1.5 mm at 30 m | Self-levelling horizontal & manual slope in one axis | 0, 2, 5, 10rps | 635 nm (visible) | Alkaline 60hrs / Li-Ion 40 hrs | IP67 |

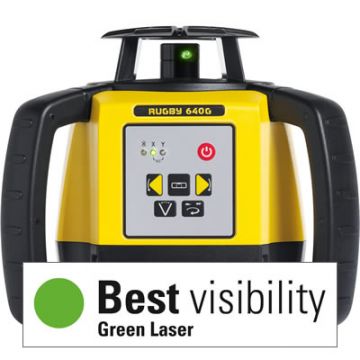

| Rugby 640G | 600m | ± 1.5 mm at 30 m | Self-levelling horizontal & manual slope in one axis. Best visibility Green Laser. | 0, 2, 5, 10rps | 635 nm (visible) | Alkaline 60hrs / Li-Ion 40 hrs | IP67 |
| Rugby 670 | 800m | ± 1.5 mm at 30 m | Self-levelling horizontal, dial-in grade in single axis | 10rps | 635 nm (visible) | Alkaline 60hrs / Li-Ion 40 hrs | IP67 |
| Rugby 680 | 800m | ± 1.5 mm at 30 m | Self-levelling horizontal, dial-in grade in dual axis | 10rps | 635 nm (visible) | Alkaline 60hrs / Li-Ion 40 hrs | IP67 |
| Rugby 810 | 800m | ± 1.5mm @ 30m | Self-levelling horizontal, single manual slope (with slope adapter) | 10rps | 635 nm (visible) | Alkaline 60hrs / Li-Ion 45hrs | IP68 |
| Rugby 820 | 800m | ± 1.5mm @ 30m | Self-levelling horizontal & manual slope in dual axis | 10rps | 635 nm (visible) | Alkaline 60hrs / Li-Ion 45hrs | IP68 |
| Rugby 830 | 1350m | ± 1.5mm @ 30m | Self-levelling horizontal & manual slope in dual axis | 10rps | 635 nm (visible) | Alkaline 60hrs / Li-Ion 45hrs | IP68 |
| Rugby 840 | 700m | ± 1.5mm @ 30m | Self-levelling horizontal, vertical, 90° and manual slope in dual axis | 0/2/5/10rps | 635 nm (visible) | Alkaline 60hrs / Li-Ion 45hrs | IP68 |
| Rugby 270SG | 350m | 3.0mm @ 30m | 15% Single Grade | 5/10rps | 635 nm | Alkaline 70hrs / NiMH 40hrs | IP67 |
| Rugby 280DG | 350m | 3.0mm @ 30m | Remote Control Scanning Modes 10/45/90 degrees plumb beam | 0/2/5/10rps | 635 nm | Alkaline 70hrs / NiMH 40hrs | IP67 |
| Rugby 320SG | 900m | 1.6mm @ 30m | Self-levelling, single grade - 5 to + 25 % | 5/10/15/20rps | 635 nm | Alkaline 130hrs / NiMH 100hrs | IPX-7 |
| Rugby 410DG | 800m | 1.6mm @ 30m | Self-levelling. dual grade - 5 to + 25 % in either axis | 5/10/15/20rps | 780 nm invisible | Alkaline 130hrs / NiMH 100hrs | IPX-7 |
| Rugby 420DG | 1100m | 1.6mm @ 30m | Self-levelling. dual grade - 5 to + 25 % in either axis | 5/10/15/20rps | 635 nm visible | Alkaline 130hrs / NiMH 100hrs | IPX-7 |
