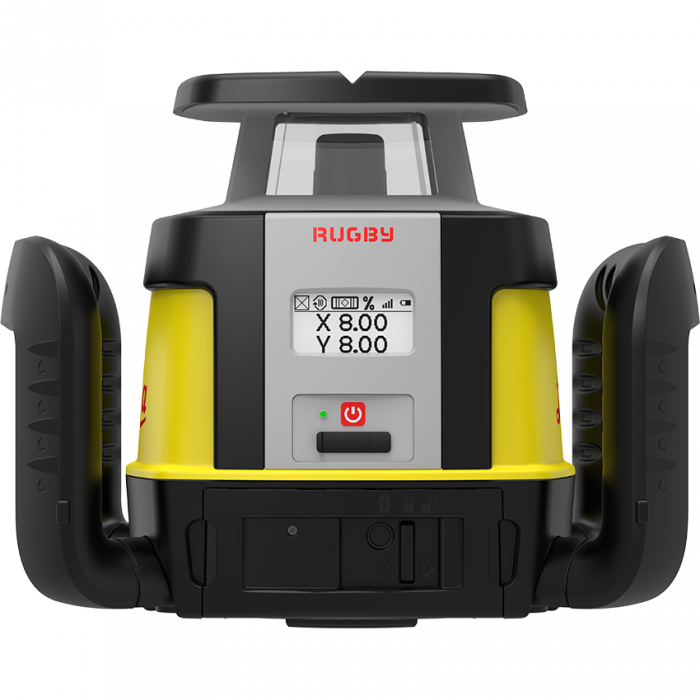

Leica Rugby CLH Base Unit - One Button
Leica Rugby CLH Base Unit - One Button
Get in touch with our experienced sales team to order or discuss any products
Tel: 01480 402250
Email: sales@sccssurvey.co.uk
Hire enquiries
Tel: 01480 402269
Email: hires.geo@sccssurvey.co.uk
Simplicity at Its Best
Leica Rugby CLH simplicity allows effortless use of the capabilities of the laser system. It saves time by simplifying applications and making you more productive. Its robust design secures measurement stability and accuracy for your daily tasks. The handle is fixed to the base with special sockets that feature high rigidity and provide a strong mount to the base. The upgrade options allow for maximised performance in all levelling applications.
HORIZONTAL ONE-BUTTON LASERUse it as a simple to operate, ideal for concrete and formwork levelling, height checking and transferring, and land levelling applications.
Price includes
- Rugby CLH Basic Laser Level
- Li-ion Battery Pack
- A100 Li-ion Battery Charger
- Carrying Case
- User Manual
- Calibration Certificate - 1 Year
| Leica Rugby CLH Upgrade options | ||
| Base unit |
 |
HORIZONTAL ONE-BUTTON LASER Use it as a simple to operate, ideal for concrete and formwork levelling, height checking and transferring, and land levelling applications. |
| CLX 200 |
 |
HORIZONTAL & SLOPE With manual slope function, slope catch and slope lock, this upgrade makes slope applications, such as ramps and driveways a simple and efficient task |
| CLX 300 |
|
HORIZONTAL & SINGLE GRADE WITH DIAL-IN Adding +-8% semi-automatic grade functionality in single axis with a dial-in option, the upgrade delivers a solid performance in single slope applications |
| CLX 400 |
|
HORIZONTAL & DUAL GRADE WITH DIAL-IN Adding +-8% semi-automatic grade functionality in second axis with a dial-in option, the upgrade delivers a solid performance in dual slope applications |
 |
Site preparation Automated machine control systems for slope and flat work. |
 |
Grade checking Check grades easily and reliably. |
|
 |
Parking areas Single and dual slopes ensure proper drainage from parking areas. |
 |
Parking islands Set the forms for parking areas to match site requirements. |
|
 |
Slopes for ramps and driveways Dial-in or catch slope in single or dual axis. |
 |
Formwork verticality Vertical alignment of forms using slope match function. |
|
 |
Set out walls Align two points and mark position of wall using slope catch function. |
 |
Concrete levelling Check concrete level during the pour. |
|
 |
Formwork levelling Set and level concrete forms. |
 |
Batter board Align building axes using slope catch function. |
|
 |
Set out drywalls Align two points and mark position of drywall using slope catch function. |
 |
Level ceiling Check and level suspended ceiling. |
| Leica Rugby | CLH | CLA | CLI |
| Warranty | 5Y/2Y knockdown | 5Y/2Y knockdown | 5Y/2Y knockdown |
| Grade capability* (X/Y Axes) | 8% | 15% | 15% |
| Self-levelling accuracy** | ± 1.5 mm at 30 m (± 1/16" at 100 ft) |
± 1.5 mm at 30 m (± 1/16" at 100 ft) |
± 1.5 mm at 30 m (± 1/16" at 100 ft) |
| Self-levelling range | ± 6° | ± 6° | ± 6° |
| Operating range with Combo, RE 140/160 | 1350 m diameter | 1350 m diameter | 1350 m diameter |
| Remote range | 600 m diameter | 600 m diameter | 600 m diameter |
| Laser class | 1 | 2 | 1 |
| Environmental standard | IP68/MIL-STD-810G | IP68/MIL-STD-810G | IP68/MIL-STD-810G |
| Operating temperature | -20 °C to +50 °C -4 °F to +122°F |
-20 °C to +50 °C -4 °F to +122°F |
-20 °C to +50 °C -4 °F to +122°F |
| Storage temperature | -40 °C to +70 °C -40 °F to +158 °F |
-40 °C to +70 °C -40 °F to +158 °F |
-40 °C to +70 °C -40 °F to +158 °F |
| Rotation speed | 10, 15, 20 RPS | 0, 2, 5, 10, 15, 20 RPS | 10, 15, 20 RPS |
| Batteries (Li-Ion) | Li-Ion | Li-Ion | |
| Battery operating time** | 50 h | 50 h | 50 h |
| Battery charging | 5 h (full charge) 1 h fast charge = 8 h operating |
5 h (full charge) 1 h fast charge = 8 h operating |
5 h (full charge) 1 h fast charge = 8 h operating |
| Dimensions (H × W × D) | 230 mm / 9,1 in 296 mm / 11,7 in 212 mm / 8,3 in |
230 mm / 9,1 in 296 mm / 11,7 in 212 mm / 8,3 in |
230 mm / 9,1 in 296 mm / 11,7 in 212 mm / 8,3 in |
| Weight with batteries | 3.8 Kg / 8,3 lbs | 3.9 Kg / 8,5 lbs | 3.9 Kg / 8,5 lbs |
| * Up to 45° with adapter. ** Accuracy defined at 25°C (77°F) battery life depending upon environmental conditions. All specifications are depending on activated functionality. | |||
| LEICA COMBO (RECEIVER/REMOTE) | |
| Warranty | 3Y |
| Anti-Strobe |  |
| Working range - Receiver | 1350 m / 4430 ft (diameter) |
| Working range - Remote | 600 m / 1969 ft (diameter) |
| Detection window | 120 mm /4.7 in |
| Digital read out | |
| Offset | |
| Variable detection window length | |
| Audio volumes | 4 (including mute) |
| Detection bandwidth | 0.5, 1, 2, 5 mm |
| Environmental standard | IP67 |
| Batteries (li-ion) / Battery operating time** | Li-Ion 3.7V / 50 h |
| Battery charging | 5 h (full charge) 1 h (fast charge - 8 h operating) |
| Rechargeable battery / charging option with power bank (USB-C) | |
| Operating temperature | -20°C to +50°C, -4°F to +122°F |
| Dimensions (H × W × D) | 205 mm/8,1 in, 86 mm/3,4 in, 32 mm/1.2 in |
| Weight with batteries | 0.4 Kg / 0.9 lbs |
| ** Defined at 25°C (77°F) battery life depending upon environmental conditions. All specifications are depending on activated functionality. | |
| SKU | Leica Rugby CLH Base Unit |
|---|---|
| MPN | 6012274 |
| Brand | Leica Geosystems |
| Package Includes |
|
