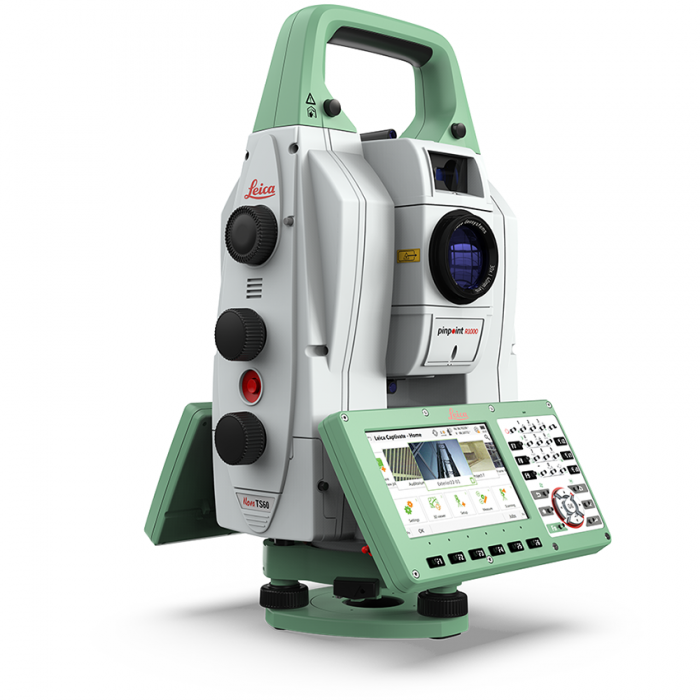

0,5” To the point.Leica Nova TS60 is the world’s most accurate total station, enabling you to work with the best angular (sub-second) and distance accuracy (sub-millimetre). It is designed and manufactured to the highest levels of quality and best fit for the most demanding projects due to its reliability even in the harshest conditions. Be it rain, fog, dust, sun, heat shimmer or reflections: with the TS60 you will always stay on top of your game.
When working on demanding surveying projects your main priority is to avoid mistakes and have an instrument that always works with the expected highest accuracy – an instrument you can rely on. This way you reduce the risk of cost and delays due to inaccurate or unreliable measurements, even under challenging environmental conditions. The Leica Nova TS60 leaves no room for compromises: it delivers the world’s best angular accuracy of 0.5” and distance accuracy of 0.6mm + 1ppm. The instrument remains extremely accurate even under the harshest conditions like rain, fog, dust, sun, heat shimmer or reflections with the sole intention of giving you the ultimate peace of mind.
ACCURACY AT ITS BEST

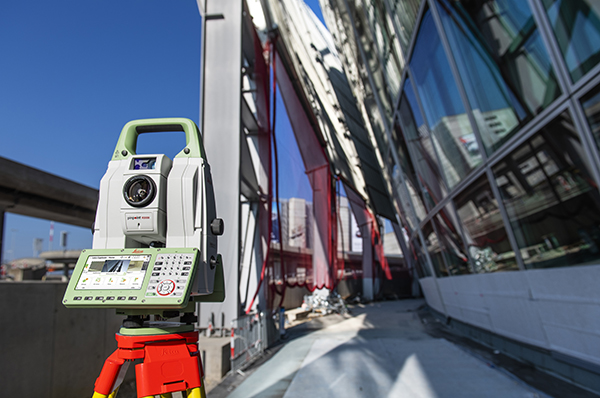

- Highest accuracy for stakeout tasks in construction projects: stakeout design data, guiding pre-fabricated elements to the right location.
- Reference network measurements for construction and infrastructure projects: define the reference network frame with precise angle and distance measurements.
- Measuring buildings and structures: bridge condition/clearance analysis, BIM and as-built.
- Monitoring measurements: permanent or campaign monitoring of bridges, buildings and steel structures.
- Railways: control of slab track installation and clearance surveys.
|Leica Nova TS60 Total Station Specification|
|Accuracy 1 Hz and V||Absolute, continuous, quadruple||0.5” (0.15 mgon)|
|Range 2||Prism (GPR1, GPH1P) 3||0.9m to 3,500m|
|Non-Prism / Any surface 4||0.9m to >1,000m|
|Accuracy / Measurement time||Single (prism) 2,5||0.6mm + 1ppm / typically 2.4s|
|Single (any surface) 2,4,5,6||2mm + 2ppm / typically 2s 7|
|Laser dot size||At 50m||8mm x 20mm|
|Measurement technology||System analyser||Coaxial, visible red laser|
|Overview and telescope camera||Sensor||5 megapixel CMOS sensor|
|Field of view (overview / telescope)||19.4° / 1.5°|
|Frame rate||Up to 20 frames per second|
|Direct drives based on Piezo technology||Rotation speed / Time to change face||Maximum 200 gon (180°) per s / typically 2.9s|
|AUTOMATIC AIMING - ATRplus|
|Target aiming range2 / Target locking range2||Circular prism (GPR1, GPH1P)||1,500m / 1,000m|
|360° prism (GRZ4, GRZ122)||1,000m / 1,000m|
|Accuracy 1,2 / Measurement time||ATRplus angle accuracy Hz, V||0.5” (0.15 mgon) / typically 3-4s|
|Range / Search time||360° prism (GRZ4, GRZ122)||300m / typically 5s|
|GUIDE LIGHT (EGL)|
|Working range / Accuracy||5 –150m / typically 5cm @ 100m|
|Operating System / Field Software||Windows EC7 / Leica Captivate with apps|
|Processor||TI OMAP4430 1GHz Dual-core ARM® Cortex™- A9 MPCore™|
|Autofocus telescope||Magnification / Focus Range||30 x / 1.7m to infinity|
|AutoHeight Module||Distance accuracy||1.0 mm (1 Sigma)|
|Distance range||0.7 m to 2.7 m|
|Display and keyboard||5“ (inch), WVGA, colour, touch, both faces||37 keys, illumination|
|Operation||3x endless drives, 1x Servofocus drive, 2x Autofocus keys, user-definable SmartKey|
|Power management||Exchangeable Lithium-Ion battery||Up to 9h, internal charging capability|
|Data storage||Internal memory / Memory card||2 GB / SD card 1 GB or 8 GB|
|Interfaces||RS232, USB, Bluetooth®, WLAN|
|Weight||Total station including battery||7.7kg|
|Environmental specifications||Working temperature range||–20°C to + 50°C|
|Dust & Water (IEC 60529) / Blowing rain||IP65 / MIL-STD-810G, Methods 506.5 I and 507.5|
1 - Standard deviation ISO 17123-3
2 - Overcast, no haze, visibility about 40 km, no heat shimmer
3 - 1.5m to 2000m for 360° prisms (GRZ4, GRZ122)
4 - Object in shade, sky overcast, Kodak Gray Card (90% reflective)
5 - Standard deviation ISO 17123-4
6 - Distance > 500m: Accuracy 4mm+2ppm, Measurement time typ. 6s
7 - Up to 50m, max. measurement time 15s
|SKU||Leica Nova TS60 NEW|
