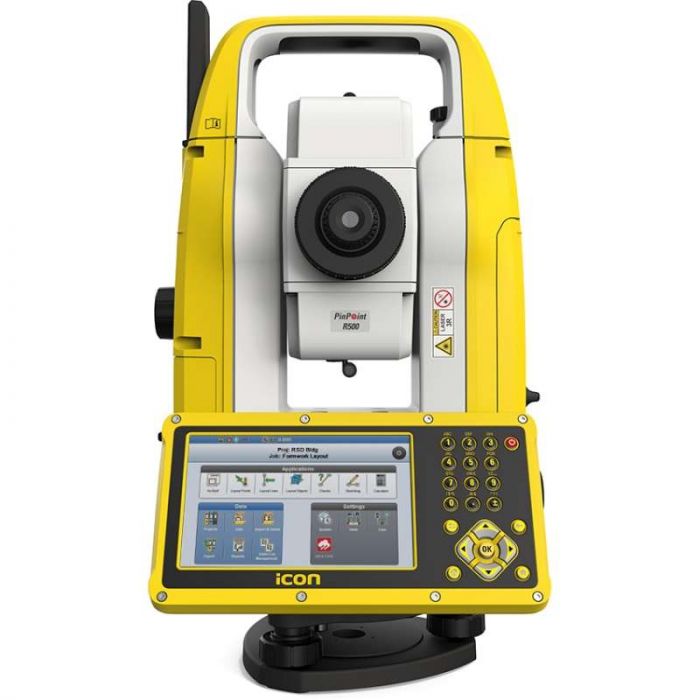

Leica iCON iCB70 Manual Construction Total Station

SKU: Leica iCON iCB70 Manual Construction Total Station

Leica iCON iCB70 Manual Construction Total Station

The Leica iCON iCB70 manual construction total station makes you layout more points per day on your construction project with either prism or reflectorless measurements. Featuring mobile data capability, the iCB70 lets you transfer construction data between the office and the instrument directly, keeping your project progress and plans constantly up to date, assuring that you do not miss any changes in design. Facilitating the move from conventional analogue layout methods to modern digital workflows, the iCB70 helps you to achieve the productivity and accuracies demanded by the building construction industry.

The iCON iCB70 allows users to:

  • Keep tight project tolerances by measuring to a prism
  • Layout points and lines quickly and accurately, even on complex structures
  • Perform verticality checks on formwork and structures
  • Complete fast and accurate as-built measurements
  • Report volume calculations directly on site
  • Work with digital design data including fully rendered models in IFC format
  • Transfer construction data directly to and from the instrument

Equipped with the construction-tailored and easy-to-use software platform iCON build, the Leica iCON iCB70 manual construction total station guarantees efficient layout and as-built tasks. Forget about paper plans, tapes, plumb-bobs and chalk-line that cause error-prone layout jobs on your construction site. Leica Geosystems’ new manual construction total stations support you in your no-tapes and no-strings approach to construction layout.

The iCON iCB70 features:

  • iCON build with ‘build plus’ on-board software
  • 5 inch colour touch screen and full numeric keyboard
  • FineFocus telescope to simply aim to a defined target
  • 1’’, 2’’ and 5’’ angular accuracy
  • Prism and reflectorless measurements
  • Bluetooth and WLAN
  • Mobile data (GSM / GPRS / UMTS / LTE) as an option
  • IP66 rating

Call or email for price

Tel: 01480 404888

Email: sales@sccssurvey.co.uk

The Leica iCON iCB70 manual construction total station makes you layout more points per day on your construction project with either prism or reflectorless measurements. Featuring mobile data capability, the iCB70 lets you transfer construction data between the office and the instrument directly, keeping your project progress and plans constantly up to date, assuring that you do not miss any changes in design. Facilitating the move from conventional analogue layout methods to modern digital workflows, the iCB70 helps you to achieve the productivity and accuracies demanded by the building construction industry.

The iCON iCB70 allows users to:

  • Keep tight project tolerances by measuring to a prism
  • Layout points and lines quickly and accurately, even on complex structures
  • Perform verticality checks on formwork and structures
  • Complete fast and accurate as-built measurements
  • Report volume calculations directly on site
  • Work with digital design data including fully rendered models in IFC format
  • Transfer construction data directly to and from the instrument

Equipped with the construction-tailored and easy-to-use software platform iCON build, the Leica iCON iCB70 manual construction total station guarantees efficient layout and as-built tasks. Forget about paper plans, tapes, plumb-bobs and chalk-line that cause error-prone layout jobs on your construction site. Leica Geosystems’ new manual construction total stations support you in your no-tapes and no-strings approach to construction layout.

The iCON iCB70 features:

  • iCON build with ‘build plus’ on-board software
  • 5 inch colour touch screen and full numeric keyboard
  • FineFocus telescope to simply aim to a defined target
  • 1’’, 2’’ and 5’’ angular accuracy
  • Prism and reflectorless measurements
  • Bluetooth and WLAN
  • Mobile data (GSM / GPRS / UMTS / LTE) as an option
  • IP66 rating

Credit Card Logos

Free Delivery

Send to a Colleague

Delivery and Returns

Price Match Promise

Delivery and Returns

Leica
Description

Leica iCON iCB50 & iCB70
Leica iCON iCB50 Manual Construction Total Station
iCB50
Leica iCON iCB70 Manual Construction Total Station
iCB70
ANGULAR MEASUREMENT
Accuracy Hz and V Absolute, continuous, diametrical 2’’ / 5’’ 1’’ / 2’’ / 5’’
  • Display resolution: 1’’ (0.3 mgon)
  • Quadruple axis compensation
  • Compensator setting accuracy2: 0.5’’ / 1.5’’
  • Compensator range: +/- 4’ (+/- 0.07 gon)
  • Electronic level resolution: 2“
  • Circular level sensitivity: 6` / 2 mm
DISTANCE MEASUREMENT
Range
  • Prism (GPR1, GPH1P): 1.5 m to 3.500 m
  • Reflective Tape 60 mm x 60 mm > 250 m
Non-Prism / Any surface
  • R500
Accuracy / Measurement time Single prism
  • Single: 1 mm + 1.5 ppm (typical 2.4 s)
  • Continuous: 3 mm + 1.5 ppm typical < 0.15 s)
  • Reflective tape 60 mm x 60 mm
  • Single mode: 3 mm + 2 ppm (typical < 2 s)
Non-Prism / Any surface
  • 0 m - 500 m: 2 mm + 2 ppm (typical 3 - 6 s)
Laser dot size
  • At 30 m: 7 mm x 10 mm
  • At 50 m: 8 mm x 20 mm
  • At 100 m: 16 mm x 25 mm
Telescope
  • Magnification: 30x
  • Resolving power: 3”
  • Focusing range: 1.55 m / 5.08 ft to infinity
  • Field of view: 1°30’ / 1.66 gon / 2.7 m at 100 m
GENERAL
Display and keyboard 5“ (inch), 800 x 480 px WVGA, colour, touch, 22 keys 5“ (inch), 800 x 480 px WVGA, colour, touch, 22 keys
2nd keyboard Optional Optional
Key illumination
Operation
  • Endless drives for HZ & V
  • Trigger-Key: user definable with 2 functions
Power management Exchangeable Lithium-Ion battery
  • Operating time with GEB361
  • Operating time with GEB331

up to 18 h
up to 9 h

up to 18 h
up to 9 h
Battery charging time with
  • GKL341 charger for GEB361 / GEB331
  • GKL311 charger for GEB361 / GEB331

3h 30 min / 3h
6h 30 min / 3h 30 min

3h 30 min / 3h
6h 30 min / 3h 30 min
External supply voltage
  • Nominal voltage 13.0 V DC & 16 W max
Data storage External supply voltage
  • Internal memory: 2 GB Flash
  • Memory card: SD card 1 GB
  • USB memory stick: 1 GB
Interfaces
  • RS232, USB device
  • Bluetooth®
  • WLAN
  • Mobile Data sidecover: LTE-Modem for internet access
Optional
Laser plummet (Laserclass 2) Accuracy
  • Plumb line deviation: 1.5 mm at 1.5 m instrument height
  • Diameter of laser point: 2.5 mm at 1.5 m instrument height
Field software iCON build field software iCON build (incl. Sketching, Layout Points, Layout Lines, Checks, As-built) iCON build plus (incl. Sketching, Layout Points, Layout Lines, Checks, As-built, Volumes, Cut/Fill, Slopes, Stakeout)
Software options iCON build plus (Volumes, Cut/Fill, Slopes, Stakeout), Layout Objects, Hidden Point, Tilted Plane,2Face and Set, Roading, Drill Pattern, MC Calibration Autodesk BIM360, Leica ConX, Layout Objects, Hidden Point, Tilted Plane, 2Face and Set, Roading, Drill Pattern, MC Calibration
Weight 4.5 kg 4.5 kg
Environmental specifications
  • Working temperature range: –20°C to +50°C
  • Dust / Water (IEC 60529) / Humidity: IP66 / 95%, non-condensing
  • Military Standard 810G

Additional Information
SKU Leica iCON iCB70 Manual Construction Total Station
Package Includes N/A
