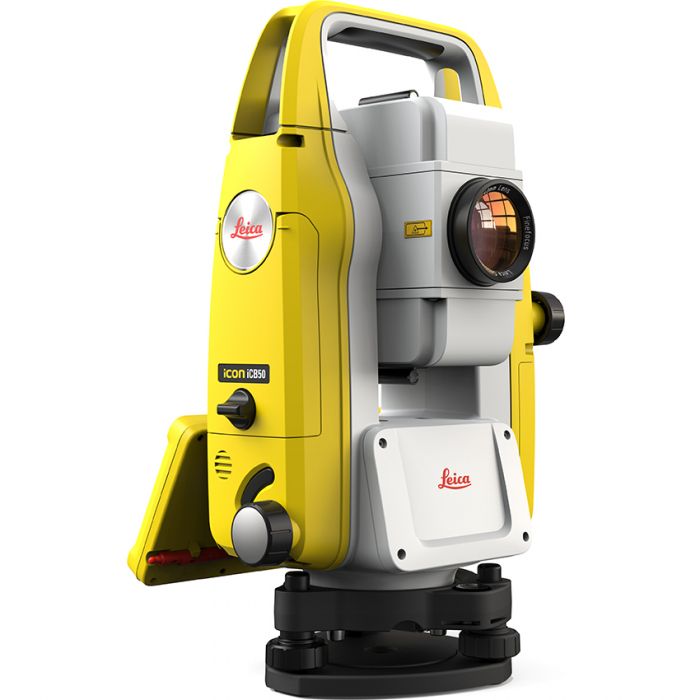

Leica iCON iCB50 Manual Construction Total Station

Description

Additional Info

Delivery & Returns

Downloads

Leica Geosystems’ new manual construction total station, the Leica iCON iCB50, simplifies your first step from conventional analogue layout methods to modern digital techniques which are needed for modern BIM processes. Easy-to-use and designed specifically for applications in the building construction industry, the iCB50 is usable with minimal training of the existing workforce, making you ready for the no-tapes and no-strings approach to construction layout.

The iCON iCB50 allows users to:

Layout points and lines quickly and accurately
Layout complex structures easily
Quickly perform verticality checks on formwork and structures
Complete fast and accurate as-built measurements
Work with digital design data including fully rendered models in IFC format

Working directly with digital design data on board of the instrument allows the operator to prepare and execute construction tasks faster, simpler and more accurately. Benefit from simplified stakeout and as-built tasks on the construction project and the ability to react quicker to changes and updates in the design.

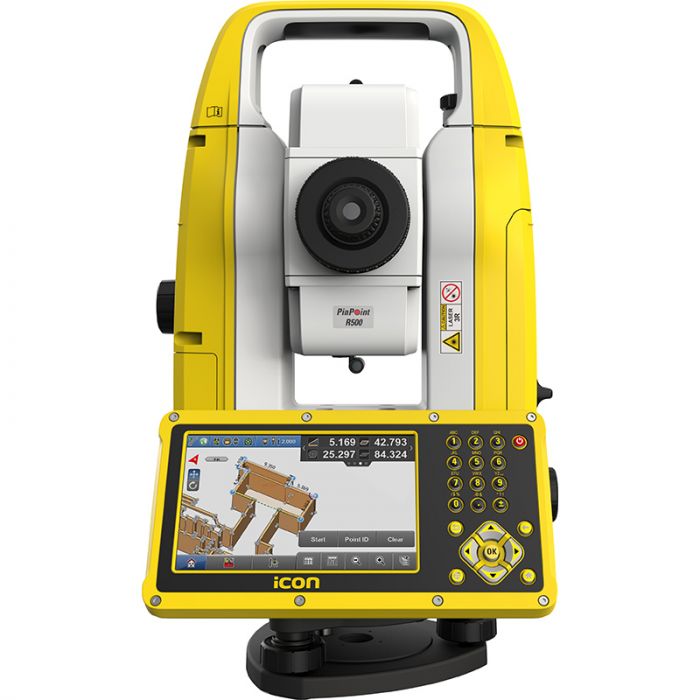

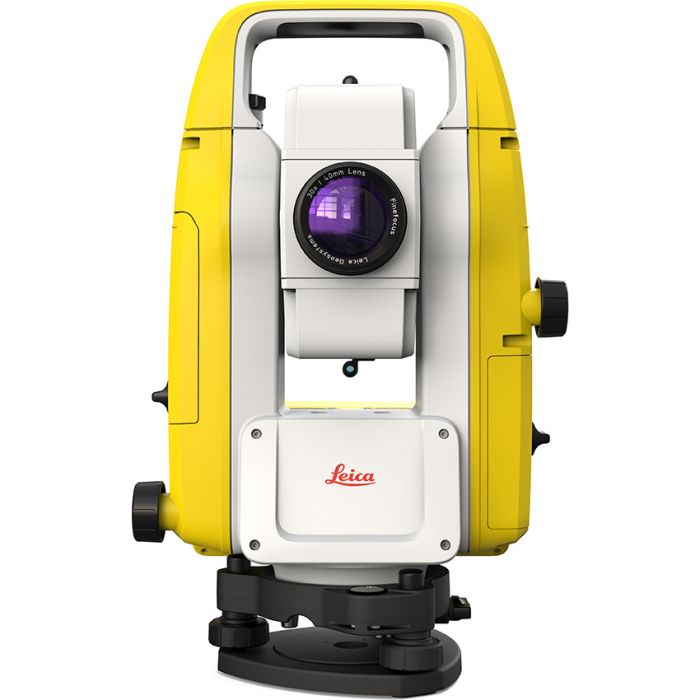

The iCON iCB50 features:

iCON build on-board software
5 inch colour touch screen and full numeric keyboard
FineFocus telescope to simply aim to a defined target
2’’ and 5’’ angular accuracy
Reflectorless measurements
Bluetooth
IP66 rating

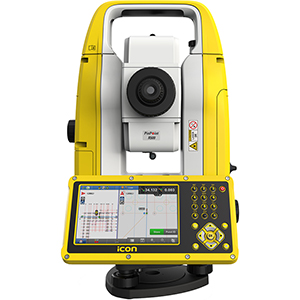

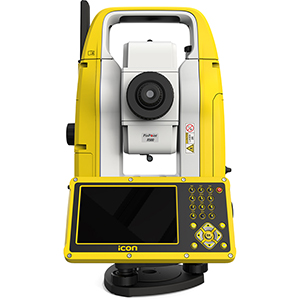

Leica iCON iCB50 & iCB70
		iCB50	iCB70
ANGULAR MEASUREMENT
Accuracy Hz and V	Absolute, continuous, diametrical	2’’ / 5’’	1’’ / 2’’ / 5’’
Accuracy Hz and V	Display resolution: 1’’ (0.3 mgon) Quadruple axis compensation Compensator setting accuracy2: 0.5’’ / 1.5’’ Compensator range: +/- 4’ (+/- 0.07 gon) Electronic level resolution: 2“ Circular level sensitivity: 6` / 2 mm
DISTANCE MEASUREMENT
Range	Prism (GPR1, GPH1P): 1.5 m to 3.500 m Reflective Tape 60 mm x 60 mm > 250 m
Range	Non-Prism / Any surface R500
Accuracy / Measurement time	Single prism Single: 1 mm + 1.5 ppm (typical 2.4 s) Continuous: 3 mm + 1.5 ppm typical < 0.15 s) Reflective tape 60 mm x 60 mm Single mode: 3 mm + 2 ppm (typical < 2 s)
Accuracy / Measurement time	Non-Prism / Any surface 0 m - 500 m: 2 mm + 2 ppm (typical 3 - 6 s)
Laser dot size	At 30 m: 7 mm x 10 mm At 50 m: 8 mm x 20 mm At 100 m: 16 mm x 25 mm
Telescope	Magnification: 30x Resolving power: 3” Focusing range: 1.55 m / 5.08 ft to infinity Field of view: 1°30’ / 1.66 gon / 2.7 m at 100 m
GENERAL
Display and keyboard		5“ (inch), 800 x 480 px WVGA, colour, touch, 22 keys	5“ (inch), 800 x 480 px WVGA, colour, touch, 22 keys
	2nd keyboard	Optional	Optional
	Key illumination
Operation	Endless drives for HZ & V Trigger-Key: user definable with 2 functions
Power management	Exchangeable Lithium-Ion battery Operating time with GEB361 Operating time with GEB331	up to 18 h up to 9 h	up to 18 h up to 9 h
	Battery charging time with GKL341 charger for GEB361 / GEB331 GKL311 charger for GEB361 / GEB331	3h 30 min / 3h 6h 30 min / 3h 30 min	3h 30 min / 3h 6h 30 min / 3h 30 min
	External supply voltage Nominal voltage 13.0 V DC & 16 W max
Data storage	External supply voltage Internal memory: 2 GB Flash Memory card: SD card 1 GB USB memory stick: 1 GB
Interfaces	RS232, USB device
	Bluetooth®
	WLAN
	Mobile Data sidecover: LTE-Modem for internet access		Optional
Laser plummet (Laserclass 2)	Accuracy Plumb line deviation: 1.5 mm at 1.5 m instrument height Diameter of laser point: 2.5 mm at 1.5 m instrument height
Field software	iCON build field software	iCON build (incl. Sketching, Layout Points, Layout Lines, Checks, As-built)	iCON build plus (incl. Sketching, Layout Points, Layout Lines, Checks, As-built, Volumes, Cut/Fill, Slopes, Stakeout)
Field software	Software options	iCON build plus (Volumes, Cut/Fill, Slopes, Stakeout), Layout Objects, Hidden Point, Tilted Plane,2Face and Set, Roading, Drill Pattern, MC Calibration	Autodesk BIM360, Leica ConX, Layout Objects, Hidden Point, Tilted Plane, 2Face and Set, Roading, Drill Pattern, MC Calibration
Weight		4.5 kg	4.5 kg
Environmental specifications	Working temperature range: –20°C to +50°C
	Dust / Water (IEC 60529) / Humidity: IP66 / 95%, non-condensing
	Military Standard 810G

SKU	Leica iCON iCB50
Package Includes	N/A
Brand	Leica Geosystems
