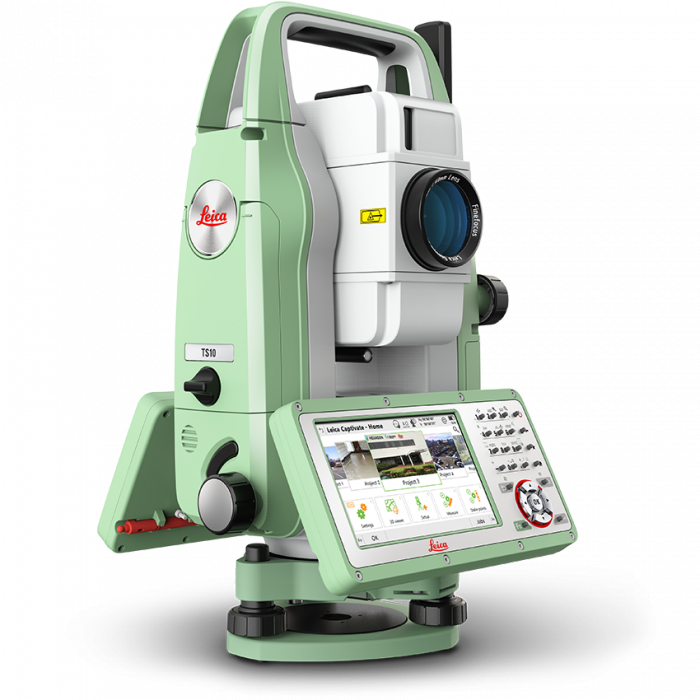

Leica FlexLine TS10 Manual Total Station

SKU: Leica-TS10

Leica FlexLine TS10 Manual Total Station

The Leica FlexLine TS10 manual total station combines user-friendly, ergonomic design with high-end reliability under harsh conditions. It enables you to tie into the modern 3D dataflow, including enhanced linework and coding. The TS10 offers mobile data device integration as an option. The larger, highly visible colour- and touchscreen helps you to complete your surveying tasks with the highest speed and accuracy. The new FlexLine generation of manual total stations relies on a proven product concept that has been revolutionising the world of measurement and survey for nearly 200 years.

  • Work faster: measure more points per day due to faster measurements and stakeout procedures, supported by the revolutionary Leica Captivate field software. The software is made to make your work easier and more enjoyable.
  • Use it trouble-free: increase productivity and minimise downtime by relying on instruments that simply work and come with a global service and support network.
  • Choose products that are built to last: even after years of use under harsh conditions (like mud, dust, blowing rain, extreme heat and cold), FlexLine still operates with the same high level of quality.
  • Control your investment: reliability, speed and accuracy ensure a lower investment over the product lifetime and a higher resell value.
  • Save time with AutoHeight: this revolutionary feature enables the FlexLine TS10 manual total station to automatically measure, read and set the instrument height. Errors are minimised and the setup process onsite is faster.

Call or email for price

Tel: 01480 404888

Email: sales@sccssurvey.co.uk

The Leica FlexLine TS10 manual total station combines user-friendly, ergonomic design with high-end reliability under harsh conditions. It enables you to tie into the modern 3D dataflow, including enhanced linework and coding. The TS10 offers mobile data device integration as an option. The larger, highly visible colour- and touchscreen helps you to complete your surveying tasks with the highest speed and accuracy. The new FlexLine generation of manual total stations relies on a proven product concept that has been revolutionising the world of measurement and survey for nearly 200 years.

  • Work faster: measure more points per day due to faster measurements and stakeout procedures, supported by the revolutionary Leica Captivate field software. The software is made to make your work easier and more enjoyable.
  • Use it trouble-free: increase productivity and minimise downtime by relying on instruments that simply work and come with a global service and support network.
  • Choose products that are built to last: even after years of use under harsh conditions (like mud, dust, blowing rain, extreme heat and cold), FlexLine still operates with the same high level of quality.
  • Control your investment: reliability, speed and accuracy ensure a lower investment over the product lifetime and a higher resell value.
  • Save time with AutoHeight: this revolutionary feature enables the FlexLine TS10 manual total station to automatically measure, read and set the instrument height. Errors are minimised and the setup process onsite is faster.

Credit Card Logos

Free Delivery

Send to a Colleague

Delivery and Returns

Price Match Promise

Delivery and Returns

Leica
Description

Leica FlexLine TS03/TS07/TS10
ANGULAR MEASUREMENT
Accuracy Hz and V Absolute, continuous, diametrical1 1’’ / 2’’ / 3’’ / 5’’“
  • Display resolution: 0.1’’ (0.1 mgon)
  • Quadruple axis compensation
  • Compensator setting accuracy2: 0.5’’ / 1’’/ 1.5’’ / 2’’
  • Compensator range: +/- 3.78’ (+/- 0.07gon)
  • Electronic level resolution: 2“
  • Circular level sensitivity: 6` / 2mm
DISTANCE MEASUREMENT
Range
  • Prism (GPR1, GPH1P): 1.5m to 3.500m
  • Prism GPR1 (Long Range mode) > 10.000m
Non-Prism / Any surface
R500
R1000
Accuracy / Measurement time Single prism
  • Precise+ / Once: 1mm + 1.5ppm (typical 2.4s)
  • Precise&Fast / Once&Fast: 2mm + 1.5ppm (typical 2s)
  • Tracking / Continously: 3mm + 1.5ppm (typical < 0.15s)
  • Averaging: 1mm + 1.5ppm
  • Long Range mode / > 4km: 5mm + 2ppm (typical 2.5s)
Non-Prism / Any surface
  • 0 m - 500m: 2mm + 2ppm (typical 3-6s)
  • > 500m: 4mm + 2ppm (typical 3-6s)
Laser dot size
  • At 30m: 7mm x 10mm
  • At 50m: 8mm x 20mm
  • At 100m: 16mm x 25mm
Telescope
  • Magnification: 30x
  • Resolving power: 3”
  • Focusing range: 1.55m / 5.08ft to infinity
  • Field of view: 1°30’ / 1.66gon / 2.7m at 100m
GENERAL
Display and keyboard 5“ (inch), 800 x 480 pixels WVGA, colour, touch, 25 keys5b, (optional5c: 37 keys with function keys)
2nd keyboard
Key illumination
Operation
  • Endless drives for HZ & V
  • Trigger-Key: user definable with 2 functions
Power management Exchangeable Lithium-Ion battery
Operating time with GEB361 up to 18h
Operating time with GEB331 hup to 9h
Battery charging time with
GKL341 charger for GEB361 / GEB331 3h 30min / 3h
GKL311 charger for GEB361 / GEB331 6h 30min / 3h 30min
Data storage
  • Internal memory: 2GB Flash
  • Memory card: SD card 1GB or 8GB
  • USB memory stick: 1GB
Processor
  • TI OMAP4430 1GHz Dual-core ARM® Cortex™ A9 MPCore™
  • Operating system – Windows EC7
Interfaces RS2327, USB device
Bluetooth®8, WLAN9
Mobile Data sidecover: LTE-Modem for internet access
Guide Light (EGL)
  • Working range: 5m to 150m
  • Position accuracy: 5cm at 100m
  • Wavelength red /orange: 617nm / 593nm

(R1000)
Laser plummet
(Laserclass 2)
Accuracy
  • Plumb line deviation: 1.5mm at 1.5m instrument height
  • Diameter of laser point: 2.5mm at 1.5m instrument height
AutoHeight module for automatic instrument height measurement (Laserclass 2) Accuracy
  • Distance accuracy: 1.0mm @ 1m
  • Distance range: 0.7m to 2.7m
Weight 4.4 - 4.9kg
Environmental specifications Working temperature range: –20°C to +50°C
Arctic version: –35°C to +50°C
Dust / Water (IEC 60529) / Humidity: IP66 / 95%, non-condensing
Military Standard 810G, Method 506.5
