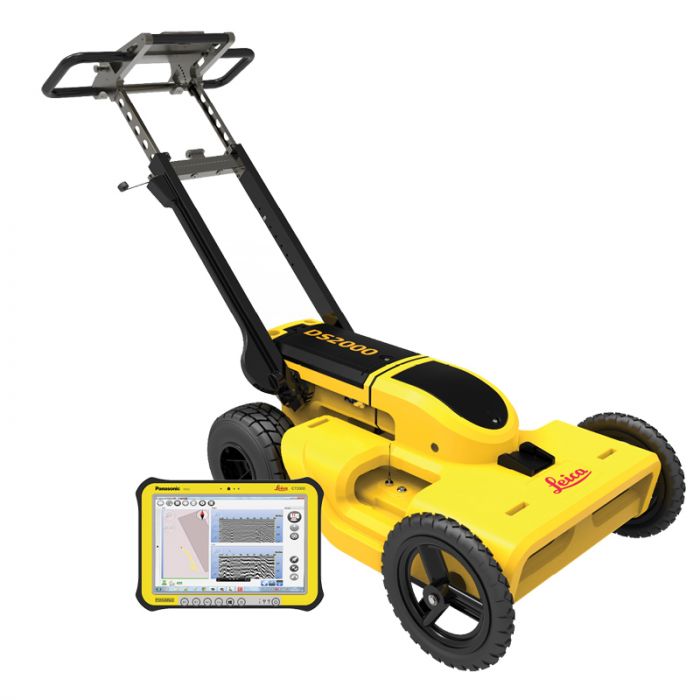

Leica DS2000 Utility Detection Radar

SKU: Leica-DS2000

Leica DS2000 Utility Detection Radar

Revealing more information

There’s a great deal going on underground that’s essential you know about. The Leica DS2000 Utility Detection Radar effortlessly detects and positions both shallow and deep targets simultaneously, gathering more information, quicker, in any environment. Data collection and export of underground utilities, from storm sewers to fibre optics, is possible with the Leica DS2000.

When used along with the robust and tough Leica CT2000 field tablet and the Leica GPS60 smart antenna or the GG03, the DS2000 is part of the complete detection and underground mapping solution that will enrich your business by making it much more efficient.

Key Benefits

  • Comprehensive detection and underground mapping solution
  • The DS2000 identifies all potential threats for increased safety
  • Identify assets and recover quickly from outages underground utility assets are located exactly
  • Dual-frequency antenna for deep and shallow detection of targets simultaneously
  • Collect and understand data with the DS2000’s simple and intuitive software
  • Data storage and export for continued work on the post-processing
  • Manoeuvre with ease around challenging sites with advanced ergonomics

Contact our expert SCCS representative for more information on the Leica DS2000 and other detection solutions.

Availability: In stock

Call or email for price

Tel: 01480 404888

Email: sales@sccssurvey.co.uk

Revealing more information

There’s a great deal going on underground that’s essential you know about. The Leica DS2000 Utility Detection Radar effortlessly detects and positions both shallow and deep targets simultaneously, gathering more information, quicker, in any environment. Data collection and export of underground utilities, from storm sewers to fibre optics, is possible with the Leica DS2000.

When used along with the robust and tough Leica CT2000 field tablet and the Leica GPS60 smart antenna or the GG03, the DS2000 is part of the complete detection and underground mapping solution that will enrich your business by making it much more efficient.

Key Benefits

  • Comprehensive detection and underground mapping solution
  • The DS2000 identifies all potential threats for increased safety
  • Identify assets and recover quickly from outages underground utility assets are located exactly
  • Dual-frequency antenna for deep and shallow detection of targets simultaneously
  • Collect and understand data with the DS2000’s simple and intuitive software
  • Data storage and export for continued work on the post-processing
  • Manoeuvre with ease around challenging sites with advanced ergonomics

Contact our expert SCCS representative for more information on the Leica DS2000 and other detection solutions.

Credit Card Logos

Free Delivery

Send to a Colleague

Price Match Promise

Delivery and Returns

Price Match Promise

Delivery and Returns

Leica
Description

Technical specifications
Leica DS2000 Utility Detection Radar Leica DS2000 Utility Detection Radar
DUAL-FREQUENCY ANTENNA
Antenna footprint 40 x 50 cm
Hardware channels 2
Antenna central frequencies 250 MHz and 700 MHz
Antenna orientation Perpendicular, broadside
Sampling frequency 400 kHz
DATA ACQUISITION
Acquisition speed More than 10 km/h
Scan rate per channel for 512 samples per scan 381 scans per second
Scan interval 42 scan per metre
CONTROL UNIT
Power consumption / supply 13.3 W / Rechargeable SLAB (Sealed Lead Acid Battery) 12 V DC, 12 Ah
Operating temperature range –10° C to +40° C
Weight 24 kg 27 kg
Protection IP65



Underground Services

Additional Information
SKU Leica-DS2000
Package Includes N/A
Manufacturer Leica
FAQs

FAQs

What are the main targets a Leica DS2000 GPR is used to find?
A GPR is able to find most underground services. That said, varying ground conditions can help or hinder the detection of them with the use of radar.

What separates the Leica DS2000 from other utility detection GPRs?
The Leica DS2000 is a robust, user friendly system. It features two frequencies meaning that it’s able to comfortably look into both shallow and deeper ground at any one point. This means you’re able to clearly see both shallow and deeper services on the screen at the time of acquisition.

On average in the UK & ROI, what would you say is the deepest you can see to effectively locate utilities?
This is variable as ground conditions aren’t the same everywhere – however, on average I’d say anything between 1.5 – 2.5 meters.

What limitations are there for GPR?
Ground that is saturated with water can be a hindrance. Also, looking for services that hold a similar property to the ground you’re looking into – for example: looking for clay pipes in ground that is predominantly made up of clay.

If I’ve used a DS2000 GPR on a project, does this mean I wouldn’t need to use an Ezicat & Genny or vice versa?
No, in accordance with PAS128 these are two separate steps in utility detection. You can miss things with an Ezicat that you wouldn’t necessarily miss with a GPR – for example: plastic pipes that carry water or gas.

Utility surveying is a new service provision to our company, we’re not in a position to invest in all of the kit until demand picks up. Is there an alternative to purchasing a system straight away?
Of course, SCCS has a big rental fleet with competitive rates for both one off and long term hire periods.

What do I need to know before if I purchase or hire a DS2000?
Nothing necessarily, we can provide you with comprehensive product training and also give you an understanding of what different features look like in DS2000 data.

What happens if I’ve hired a system from you but I can’t remember everything you told me when the system was delivered?
All you need to remember is to give me a call if you have any queries with how to use the GPR.

Our client hasn’t stated whether or not they want the services marked on-site or if they want a paper trail?
No issue, any data recorded with a DS2000 is automatically saved to the tablet (PC). Once a GPR survey is finished you can print out a PDF survey report which will contain information on the completed survey.

Can you use GPS with GPR?
Absolutely, you can use the DS2000 with or without GPS. We can provide you with a GPS system that talks directly to the software. Alternatively, you can use your own system as long as it meets the minimum requirements ($GP GGA, serial port or Bluetooth connection, and a minimum of 5Hz).
