Leica DA220 1 Watt Signal Transmitter

SKU: 2901037

Leica DA220 1 Watt Signal Transmitter

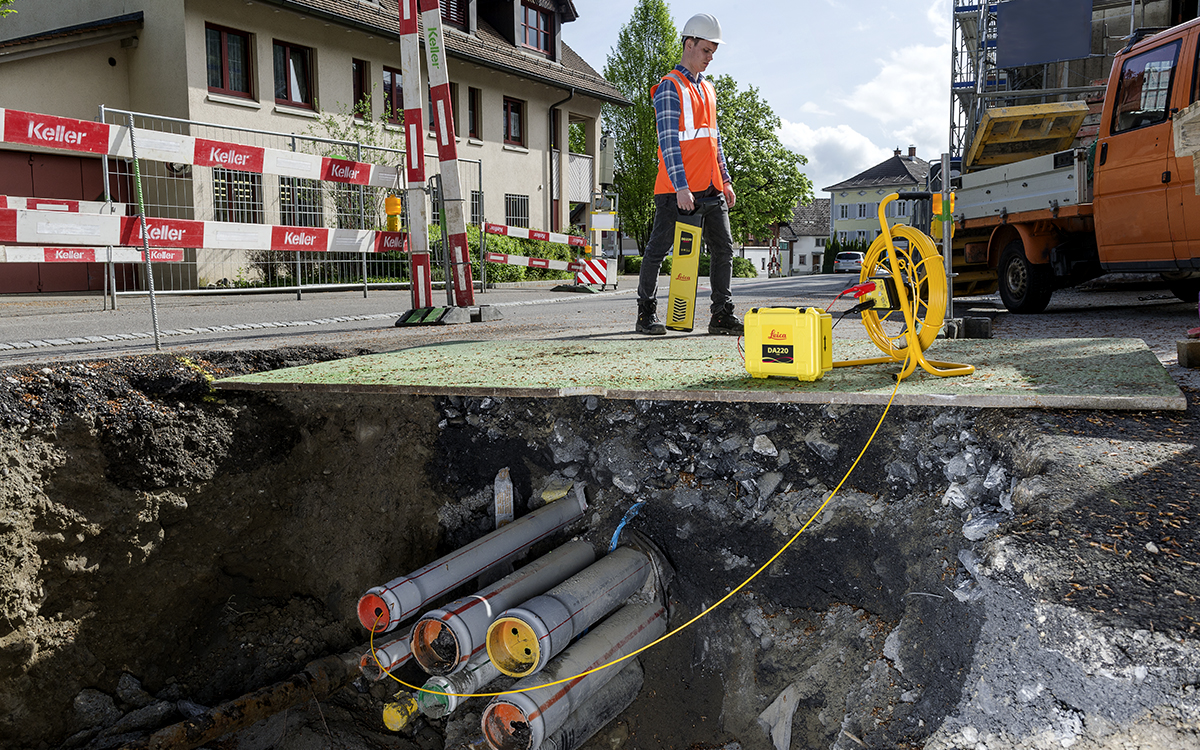

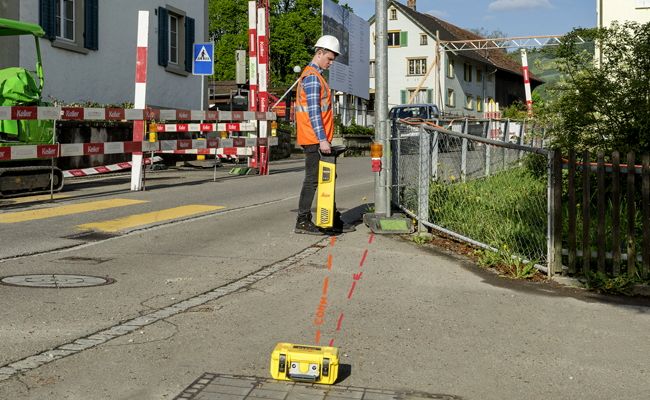

The Leica DA signal transmitters apply a signal onto underground cables or pipes that may not carry a detectable signal. The Leica DD SMART cable locators can then be used to locate the signal from the Leica DD signal transmitter. The DA signal transmitters are compact, robust and easy-to-use. The have been designed in conjunction with the DD SMART cable locators to easily and accurately avoid, trace or locate buried cables and pipes.

  • To improve the detection success.
  • To trace the route of a utility.
  • To make a depth or current measurement.

Leica DD220 Smart Utility Locator

Availability: In stock

£714.00 inc VAT £595.00 excl VAT
£714.00 inc VAT £595.00 excl VAT
SCCS
Order by phone: 01480 404888
Call our experienced sales team to order or discuss any products.

The Leica DA signal transmitters apply a signal onto underground cables or pipes that may not carry a detectable signal. The Leica DD SMART cable locators can then be used to locate the signal from the Leica DD signal transmitter. The DA signal transmitters are compact, robust and easy-to-use. The have been designed in conjunction with the DD SMART cable locators to easily and accurately avoid, trace or locate buried cables and pipes.

  • To improve the detection success.
  • To trace the route of a utility.
  • To make a depth or current measurement.

Leica DD220 Smart Utility Locator

Credit Card Logos

Free Delivery

Send to a Colleague

Delivery and Returns

Follow us on LinkedIn

Price Match Promise

Delivery and Returns

Leica
Description

The Leica DD SMART utility locators and DX Shield software open the door to a connected world, anywhere, anytime. Leica DD SMART utility locators detect underground assets deeper, faster and more accurately. Understand site activity and utility locator use in greater detail with DX Shield software. The DD230/220 SMART locators are scalable and designed with the latest Bluetooth technology, providing a wire-free connection to mobile devices.

Connect and download data stored in the DD SMART utility locators’ internal memory, including GPS positioning and transfer it back to the DX Shield software for analysis. USB connectivity provides a convenient connection to DX Office Shield for product configuration, maintenance and data analysis.

Leica DD220 Smart Utility Locator

Leica DD Smart Utility Locator Technical Specifications

MODE DD220 SMART DD230 SMART
Power 50 / 60 Hz mains electrical and harmonics 50 / 60 Hz mains electrical and harmonics
Radio 15kHz to 60kHz 15kHz to 60kHz
Auto Power, Radio, 33kHz Power, Radio, 33kHz
Transmitter Modes 131.072 (131) kHz
32.768 (33) kHz
8.192 (8) kHz
131.072 (131) kHz
32.768 (33) kHz
8.192 (8) kHz
512 Hz
640 Hz
Depth Range Line 0.1m to 5m
Line 4 inches to 16.4 feet
Sonde 0.1m to 7m
Sonde 4 inches to 23 feet
Line 0.1m to 7m
4 inches to 23 feet
Sonde 0.1 to 10m
Sonde 4 inches to 32.8 feet
Depth Accuracy* 5% 5%
Bluetooth Class 2 BLE dual mode module
Bluetooth Classic 2.1
Bluetooth 4.0 (LE)
Class 2 BLE dual mode module
Bluetooth Classic 2.1
Bluetooth 4.0 (LE)
GPS** Chipset (1): u-blox®GPS
Reciever Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1
Accuracy (2): Horizontal Position 2.5 m
Autonomous, 2.0 m SBAS,CEP
Start time: Cold 45 s typical, Aided 7 s typical, Hot 1 s typical
Chipset (1): u-blox®GPS
Reciever Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1
Accuracy (2): Horizontal Position 2.5 m
Autonomous, 2.0 m SBAS,CEP
Start time: Cold 45 s typical, Aided 7 s typical, Hot 1 s typical
Memory Capacity 8 GB internal memory 8 GB internal memory
Environmental Standard IP66 IP66
Operating Temperature -20 °C to +50 °C
-4 °F to +122°F
-20 °C to +50 °C
-4 °F to +122°F
Battery 7.4V Rechargeable Li – Ion 7.4V Rechargeable Li – Ion
Battery operating time *** 15 h 15 h
Dimensions (HxWxD) 765x290 x93mm
30.12 x11.42x3.66 inches
765x290 x93mm
30.12 x11.42x3.66 inches
*Depth to an undistorted signal
** (1) All data/information according to manufacturer u-blox®GPS; Leica Geosystems does not assume any liability whatsoever for such information.
(2) Accuracy is dependent upon various factors including atmospheric conditions, multipath, obstructions, signal geometry and number of tracked satellites.
*** Constant use at 20°C/68°F

Additional Information
SKU 2901037
MPN 850272
Package Includes N/A
