- Fast, accurate measurement of concrete cover
- Quick, clear indication of rebar location
- Automatic measurement of bar size
- Rapid area scanning for low-cover
- Built-in data logging
- Lightweight, IP65-rated instrument
Kolectric Research
The innovators behind the original Concrete Covermeter, the MicroCovermeter and the latest in precision concrete cover measurement – the MC8022 +.
MC8022 + Covermeter
Advanced digital processing and pulse-induction measurement combined in a rugged, highly portable instrument to give exceptional resolution and accuracy.
Solid Foundations
MC8022 + builds on the proven performance of Kolectric’s MC8020 + and is even easier to use.
Tough new cables and connectors make it the best choice for harsh environments and a fast new power system ensures MC8022 + is ready to work when you are.
The latest in precision concrete cover measurement

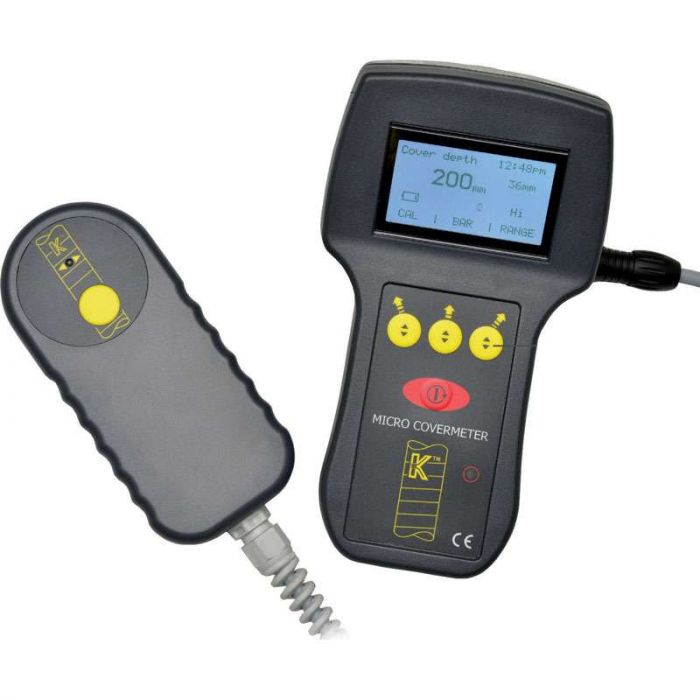

Rugged, lightweight and easy-to-use, the Kolectric Research MC8022 + provides rebar location, sizing and cover measurement in a single weather-resistant instrument.
For immediate results on-site, the onscreen gauge and audio feedback rapidly pin-point rebar location and orientation. Cover is easy to read on the back-lit display and time-stamped readings can be logged instantly with a simple button press on the probe.
Bar size can be preset if known, or detected automatically for survey and investigation tasks. For non-standard bar sizes, large diameter pipes or other pre-fabricated items, the MC8022 can also show absolute measurements that can be used to look up cover using custom tables.
Unlike bulkier, all-in-one equipment, the MC8022 + features a compact hand-held probe and industrial-grade flexible cable so that measurements can be made easily in hard-to-access spaces that would otherwise prevent the user from seeing readings; culverts, arches and over-hangs are all in reach with the MC8022 +. The optional dust-cover and strap also makes the MC8022 + easy to carry, keeping equipment and users safe.
Built on proven technology used around the world for survey, pre-fabrication, test and inspection, the MC8022 + is the latest in precision concrete cover measurement from Kolectric Research.
Cover Measurement | ||
Cover range | 5mm – 185 mm | |
Accuracy | ± 1mm up to 60mm cover | |
± 2mm up to 120mm | ||
± 3mm up to 160mm | ||
± 4mm over 160mm | ||
Automatic Bar Sizing | ||
Accuracy | ± 0.5mm – ± 1.5 mm | |
Resolution | 0.1mm | |
Operating Depth | 6mm bar up to 60mm cover | |
40mm bar up to 80mm cover | ||
Bar Resolution | ||
Bar Size | Cover | Minimum Spacing |
16mm | 60mm | 70mm |
16mm | 100mm | 110mm |
25mm | 130mm | 150mm |
Operating Parameters | ||
Operating Weight | 800g (instrument+probe+cable) | |
Operating Temp | -10°C – +50°C | |
Battery Operation | 20 hrs | |
Battery Charger | 110 – 240V AC | |
Ingress Protection | IP65 |
SKU | 1101018 |
---|---|
Brand | SCCS |
