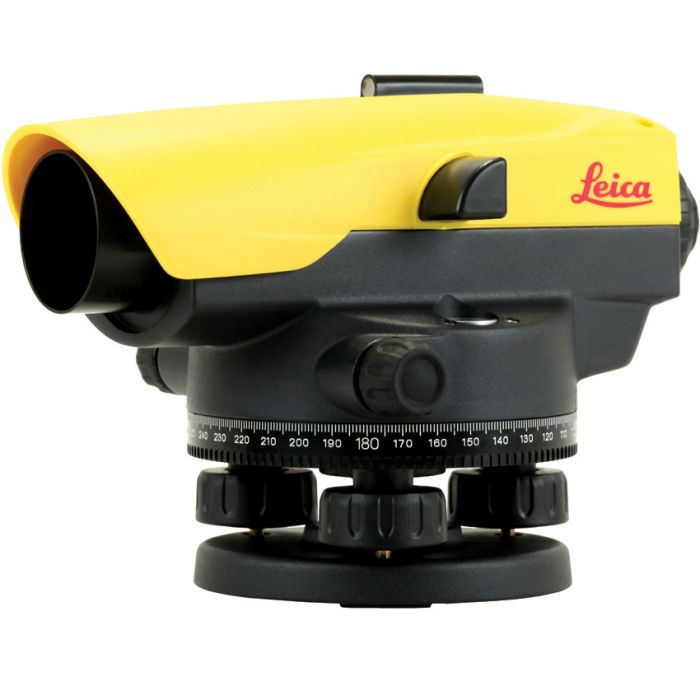

Leica NA524 Automatic Level

SKU: 2801616

Leica NA524 Automatic Level

Experts face many difficulties on site. Whatever the levelling task, Leica NA524 levels overcome. Depend on the known capabilities of Leica Geosystems for the finest in quality and performance. On your conditions and on your site, the Leica NA524 is the reliable instrument for precise measurements every time.

  • Unique design and recognised technology throughout.
  • Leica Geosystems appreciates construction and delivers levels for all needs
  • Exceptional knowledge and superior warranty you can rely on - worldwide

Benefits

  • Quick and easy to get measurements
  • Distinctive design and high quality results for levelling needs
  • Constructed for the most harshest conditions and rugged sites
  • First-rate warranty

Price Includes

  • Leica NA524 Automatic Level 360°
  • Carry Case
  • CD User Manual

Availability: In stock

£226.80 inc VAT £189.00 excl VAT
SCCS
£226.80 inc VAT £189.00 excl VAT
Includes FREE Delivery
Order by phone: 01480 404888
Call our experienced sales team to order or discuss any products.

Experts face many difficulties on site. Whatever the levelling task, Leica NA524 levels overcome. Depend on the known capabilities of Leica Geosystems for the finest in quality and performance. On your conditions and on your site, the Leica NA524 is the reliable instrument for precise measurements every time.

  • Unique design and recognised technology throughout.
  • Leica Geosystems appreciates construction and delivers levels for all needs
  • Exceptional knowledge and superior warranty you can rely on - worldwide

Benefits

  • Quick and easy to get measurements
  • Distinctive design and high quality results for levelling needs
  • Constructed for the most harshest conditions and rugged sites
  • First-rate warranty

Price Includes

  • Leica NA524 Automatic Level 360°
  • Carry Case
  • CD User Manual

Credit Card Logos

Send to a Colleague

Delivery and Returns

Follow us on LinkedIn

Price Match Promise

Delivery and Returns

Leica
Description
Technical Data
NA520 NA524 NA534
Technical Data
Standard deviation for 1 km double levelling (ISO17123-2) 2.5mm 1.9mm 1.6mm
Telescope
Telescope image Upright
Magnification 20x 24x 32x
Objective aperture 36mm
Shortest target distance from instr. axis <1.0 m
Field of view at 100 m <2.1 m
Multiplication factor 100
Additive constant 0
Compensator
Working range ± 15’
Setting accuracy (standard deviation) <0.5’’
Sensitivity 8’/2 mm
Horizontal Circle
Graduation 360°
Graduation interval
Weight (net) 1.5 kg
Operating temperature range –20° C to +50° C
Additional Information
SKU 2801616
MPN 840385
Package Includes
  • Leica NA524 Automatic Level 360°
  • Carry Case
  • CD User Manual
Brand Leica Geosystems
