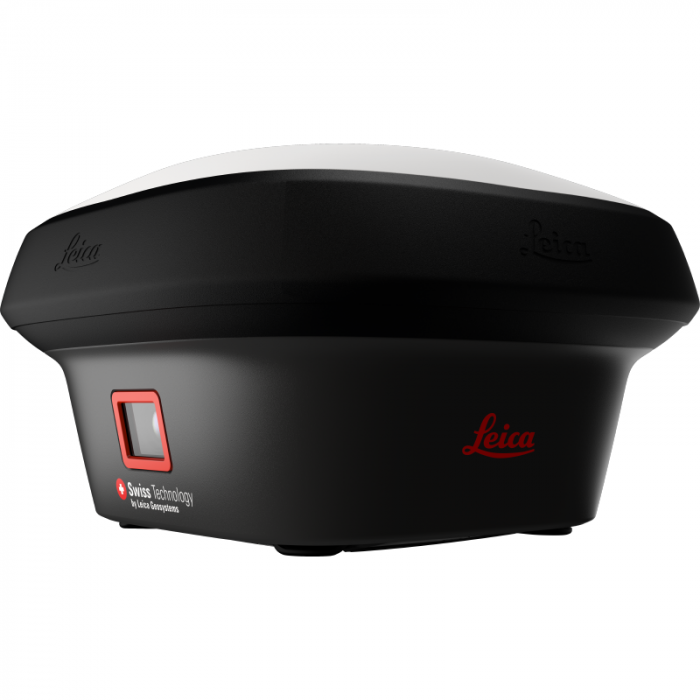

Leica GS18 I GNSS RTK Rover
Leica GS18 I GNSS RTK Rover
Contact us for price
Get in touch with our experienced sales team to order or discuss any products.
Tel: 01480 402250
Email: sales@sccssurvey.co.uk
Hire enquiries
Tel: 01480 402269
Email: hires.geo@sccssurvey.co.uk

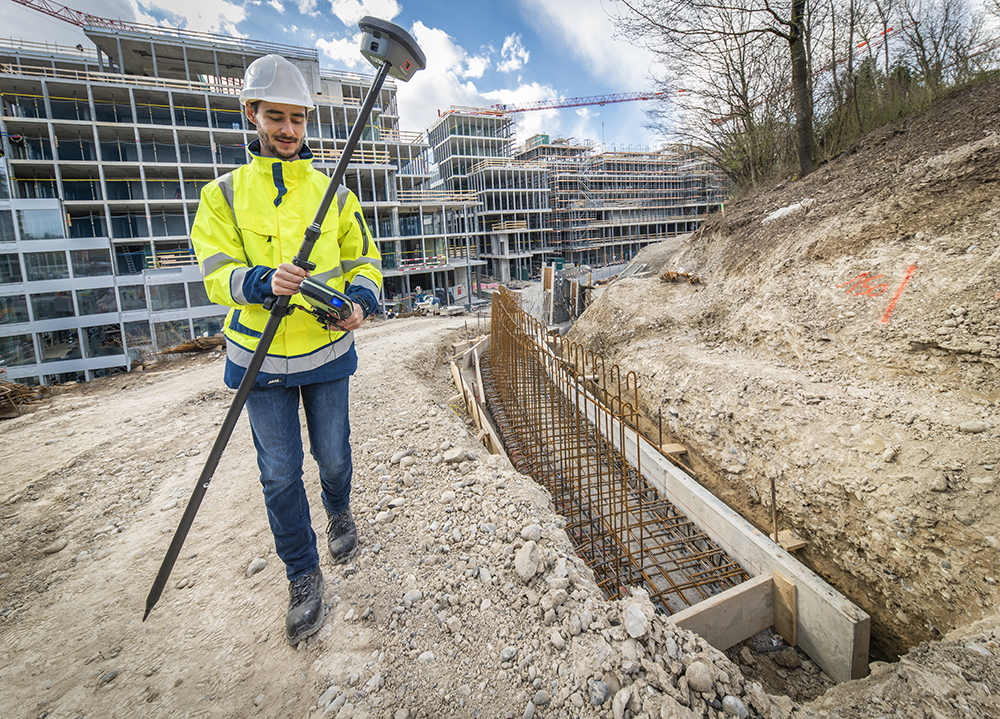

Mapping and surveying just got simpler, safer and more efficient than ever before. Meet the Leica GS18 I GNSS RTK rover with Visual Positioning. With it you can effortlessly measure points you couldn’t reach before. Capture the site with GS18 I and map points from images. A GNSS RTK rover so innovative, that you can accurately measure facades and corners without needing to switch tools. Once you capture the site, you can measure every detail whenever you want to.
Innovative

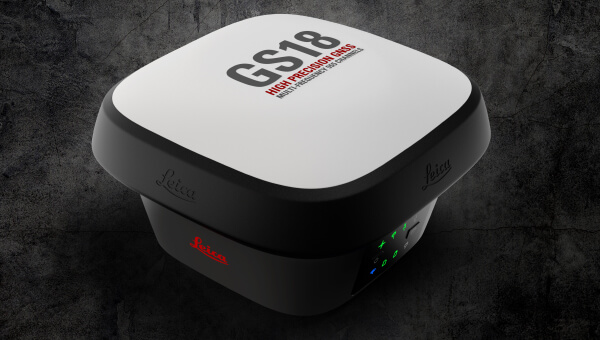

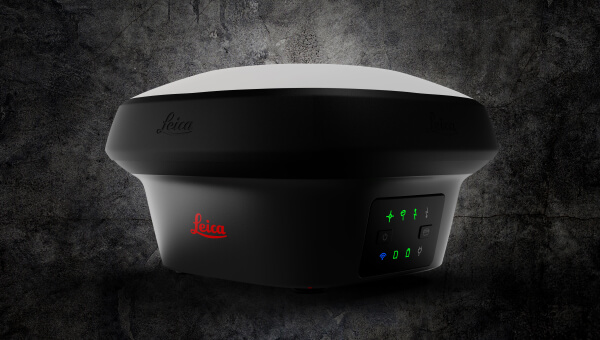

The Leica GS18 I is an accurate and easy to use GNSS RTK Rover. It utilises highly innovative Visual Positioning technology based on seamless integration of GNSS, IMU and a camera. It enables you to measure survey grade points in images on site and in the office. Create point clouds from captured data with Infinity to expand possibilities even further.
Leica GS18 I - FastFast
Designed to measure large amounts of points efficiently. Leica GS18 I allows you to capture images and measure hundreds of points within minutes, also places which cannot be physically accessed. Using images to measure these points, allows you to reduce time spent onsite and cut down re-work: once you captured the site, you have every detail measured.
Leica GS18 I - VersatileVersatile
Imaging power has changed the rules of the game. By having the power to measure what you see, you can now reach places you couldn’t before without switching tools or climbing through obstacles. That gives you the flexibility in the field, frees up equipment and crews, and truly maximises productivity in your projects which results in increased profits.
Leica GS18 I GNSS RTK Rover | |||
---|---|---|---|
GNSS TECHNOLOGY | |||
Self-learning GNSS | Leica RTKplus | Adaptive on-the-fly satellite selection | |
SmartLink (worldwide correction service) | Remote precise point positioning (3 cm 2D)1 Initial convergence to full accuracy typically 18 min, Re-convergence < 1 min |
||
SmartLink fill (worldwide correction service) | Bridging of RTK outages up to 10 min (3 cm 2D)1 | ||
Leica SmartCheck | Continuous check of RTK solution | Reliability 99.99% | |
Signal tracking | GPS (L1, L2,L2C,L5), GLONASS (L1, L2, L2c, L32) BeiDou (L1, L2 B1I, B2I, B2a, B3I), Galileo (E1, E5a, E5b, Alt-BOC, E62) QZSS (L1, L2C, L5, L62), NavIC (L53), SBAS (WASS, EGNOS, MSAS, GAGAN), L-Band | ||
Number of channels | 555 (more signals, fast acquisition, high sensitivity) | ||
Tilt compensation | Increase measurement productivity and traceability | Calibration-free Immune to magnetic disturbance | |
IMAGING | |||

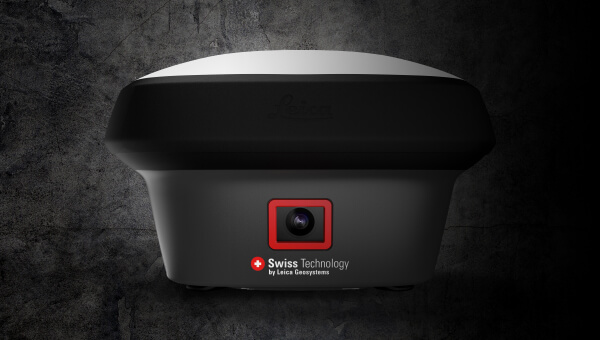

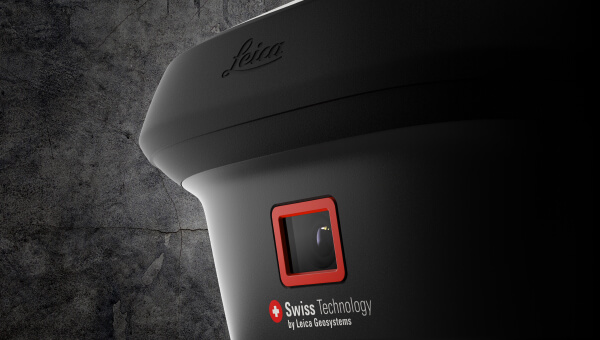

Camera | Sensor | Global shutter with 1.2 MP | |
Field of view (HZ / V) | 80° / 60° | ||
Frame rate | 20 Hz | ||
Image group capture | 2 Hz capturing rate | Max. capturing time: 60 s Size of an image group with a 60 s capturing time: appr. 50 MB | |
Working range | 2 m - 10 m distance to object of interest | ||
Point cloud | Leica Infinity | Derive point cloud from an image group | |
MEASURMENT PERFORMANCE & ACCURACY4 | |||
Time for initialisation | Typically 4 s | ||
Real-time kinematic (Compliant to ISO17123-8 standard) | Single baseline | Hz 8 mm + 1 ppm / V 15 mm + 1 ppm | |
Network RTK | Hz 8 mm + 0.5 ppm / V 15 mm + 0.5 ppm | ||
Real-time kinematic tilt compensated | Topographic points (not for static control points) | Additional Hz pole tip uncertainty typically les than 8 mm + 0.4 mm/° tilt down to 30° tilt | |
Post processing | Static (phase) with long observations | Hz 3 mm + 0.1 ppm / V 3.5 mm + 0.4 ppm | |
Static and rapid static (phase) | Hz 3mm + 0.5 ppm / V 5 mm + 0.5 ppm | ||
Code differential | DPGS / RTCM | Typically 25 cm | |
Image point measurement | 1-tap measurement in field/office | Typically 3 cm – 5 cm (3D)1 | |
COMMUNICATIONS | |||
Communication ports | Lemo | USB and RS232 serial | |
Bluetooth® | Bluetooth® v2.1 + EDR, class 1.5 | ||
WLAN | 802.11 b/g for field controller communication only | ||
Communication protocols | RTK data protocols | Leica, Leica 4G, CMR, CMR+, RTCM 2.2, 2.3., 3.0, 3.1, 3.2 MSM | |
NMEA output | NMEA 0183 v4.00 and Leica proprietary | ||
Network RTK | VRS, FKP, iMAX, MAC (RTCM SC 104) | ||
Built-in LTE modem | LTE frequency bands | Penta Band (20, 8, 3, 7, 1) / Penta Band (13, 17, 5, 4, 2)5 | |
UMTS frequency bands | Tri Band (900/1800/2100 MHz) / Tri Band (1700/1900/2100 MHz)5 | ||
GSM frequency bands | Dual Band (900/1800 MHz / Quad Band (850/900/1800/1900 MHz)5 | ||
Built-in UHF modem | Receive & transmit UHF radio modem | 403 – 473 MHz, channel spacing 12.5 kHz, 20 kHz, 25 kHz, max. 1 W output power up to 28800 bps over air | |
External data links | Generic serial interface for phone modems and UHF/VHF radio modems |
SKU | GS18I |
---|---|
Brand | Leica Geosystems |
Package Includes | N/A |
