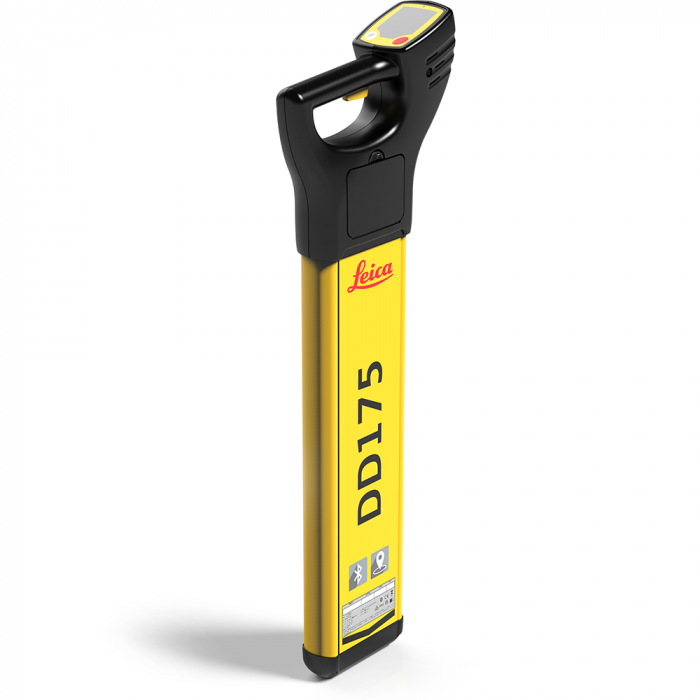

Leica DD175 Utility Locator
Leica DD175 Utility Locator
The Leica DD175 cable locator is easy to use and comes with automatic controls, making it ideal for construction sites to help prevent operator injury, asset damage and any subsequent costs by detecting the position of buried cables and pipes before excavation work. The latest DD175 locator also supports Bluetooth and GPS connection for data sharing with the DX Software Suite.
Contact us for price
Get in touch with our experienced sales team to order or discuss any products.
Tel: 01480 402250
Email: sales@sccssurvey.co.uk
Hire enquiries
Tel: 01480 402269
Email: hires.geo@sccssurvey.co.uk
The Leica DD100 Series cable locators are handheld and can detect the position of buried cables and pipes, which is crucial for preventing operator injuries, asset damage, and additional costs at construction sites. The DD100 Series is user-friendly, requiring minimal experience thanks to advanced automatic controls. For increased accuracy and application scope, use the DD100 cable locator series with the recommended DA175 transmitter and various accessories. With the latest DD175 locator, you can take advantage of Bluetooth and GPS connections, allowing for data sharing with the existing DX Software Suite.
Work Safer, Work Simpler, Work Smarter
Automatic Pinpointing eliminates the need for manual sensitivity adjustments on your cable locator. This ensures that you are using the correct sensitivity for the environment you are scanning for underground utilities. This reduces the chance of human error and makes cable and pipe locating more efficient and easier. Ultimately, this saves you time and money.
|
Leica DD120
|
Leica DD130
|
Leica DD175
|
Mode |
DD120 |
DD130 |
DD175 |
| Power | 50Hz / 60Hz model | 50Hz / 60Hz model | 50Hz / 60Hz model |
| Radio | 15kHz - 60kHz | 15kHz - 60kHz | 15kHz - 60kHz |
| Auto | Power, Radio, 33kHz | Power, Radio, 33kHz | Power, Radio, 33kHz |
| Transmitter Modes | 32.768 (33) kHz 8.192 (8) kHz |
32.768 (33) kHz 8.192 (8) kHz 512 Hz 640 Hz |
32.768 (33) kHz 8.192 (8) kHz 512 Hz 640 Hz |
| Depth Range | Line 0.3m to 3m / 1ft to 10 ft Sonde 0.3m to 3m / 1ft to 10 ft |
Line 0.3m to 3m / 1ft to 10ft Sonde 0.3m to 9.99m / 1 ft to 32.77 ft |
Line 0.3m to 3m / 1ft to 10ft Sonde 0.3m to 9.99m / 1 ft to 32.77 ft |
| Depth Accuracy* | 10% | 10% | 10% |
| Environmental Standard | IP54 | IP54 | IP54 |
| Operating Temperature | -20° C to +50° C -4° F to +122° F |
-20° C to +50° C -4° F to +122° F |
-20° C to +50° C -4° F to +122° F |
| Battery | 6 x LR6 (AA) Alkaline | 6 x LR6 (AA) Alkaline | 6 x LR6 (AA) Alkaline |
| Battery operating time** | 15 h | 15 h | 15 h |
| Dimensions (HxWxD) | 760 x 250 y 85mm (30 x 10 x 3.4 inches) |
760 x 250 y 85mm (30 x 10 x 3.4 inches) |
760 x 250 y 85mm (30 x 10 x 3.4 inches) |
| Weight with batteries | 2.7Kg 5.95 lbs |
2.7Kg 5.95 lbs |
2.7Kg 5.95 lbs |
| Internal Data Storage | - | - | Yes |
| Data Logging | - | - | Yes |
| GPS | - | - | Yes |
| Bluetooth | - | - | Yes |
| * Depth to an undistorted signal ** Constant use at 20°C/68°F |
|||
Mode |
DA175 |
||
| Induction Mode Frequencies | 32.768 (33) kHz / 8.192 (8) kHz | ||
| Power Output | Up to 1 Watt max. when connected to a buried service with an impedance of 300 Ω |
||
| Direct Connection Mode Frequencies | 32.768 (33) kHz / 8.192 (8) kHz /512 Hz / 640 Hz | ||
| Environmental Standard | Cover Closed: IP67 Cover Open: IP65 |
||
| Operating Temperature | -20 °C to +50 °C / -4 °F to +122°F | ||
| Storage Temperature | -40°C to +70°C, / -40°F to +158°F | ||
| Battery | 4 x D alkaline (IEC LR20), supplied | ||
| Battery Operating Time | 30 hrs intermittent use at 20 °C / 68 °F | ||
| Dimensions (HxWxD | 250 x 206 x 113 mm / 9.84 x 8.11 x 4.45 inches | ||
| Weight with batteries | 2.5 kg / 5.5 lbs |
| SKU | LeicaDD175 |
|---|---|
| Brand | Leica Geosystems |
| Package Includes | N/A |
