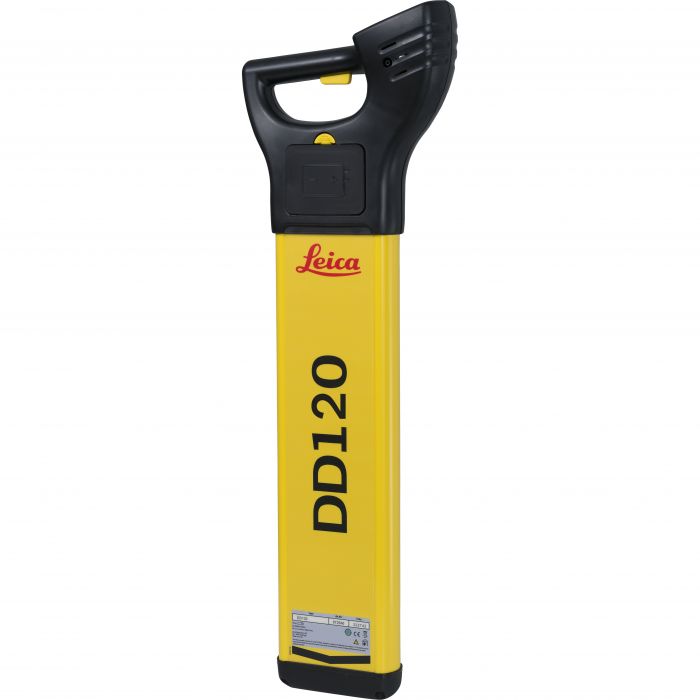

Leica DD120 Utility Locator
Leica DD120 Utility Locator
Get in touch with our experienced sales team to order or discuss any products
Tel: 01480 402250
Email: sales@sccssurvey.co.uk
Hire enquiries
Tel: 01480 402269
Email: hires.geo@sccssurvey.co.uk
Easy to use, intuitive avoidance tool
The new Leica DD120 locator reduces the complexity normally associated with scanning for buried utilities. For construction professionals who need to know what is beneath their sites, the DD120 cable locator is a simple, intuitive locator designed to detect and avoid buried utilities. The DD120’s automated pinpointing process improves the detection of utilities, reduces utility damage and increases workforce safety.
- Automatic pinpointing
- Power, Radio, Auto modes
- Transmitter, 33kHz, 8kHz
- Depth detection up to 3 meters (10 feet)
- Good-to-Go™ Health Check and Start up test
- IP54 rating - protection from dust and water
- 1 year Warranty
Handheld multi-frequency underground service locator
The Leica DD100 Series cable locators feature advanced automatic controls making the DD100 Series easy-to-use, requiring minimal user experience. Avoiding underground cables and pipes is a major concern on construction sites. Therefore, detecting the position of buried cables and pipes before excavation work can help prevent operator injury, asset damage and any subsequent costs. Use the DD120 or DD130 cable locators in conjunction with a DA220 or DA230 signal transmitter or range of accessories to achieve improved accuracy and application scope.
Unmatched ease of use
With Automatic Pinpointing there is no need for you to manually adjust the sensitivity of your Digicat cable locator ensuring you’re using the optimum sensitivity for the environment you are detecting the underground utilities in. Reducing the likelihood of human error and enabling easier and more efficient cable and pipe locating. Ultimately saving you time and money.
DD100 Series Technical Specifications
| MODE | DD120 | DD130 |
| Power | 50Hz model or 60Hz model | 50Hz model or 60Hz model |
| Radio | 15kHz to 60kHz | 15kHz to 60kHz |
| Auto | Power, Radio, 33kHz | Power, Radio, 33kHz |
| Transmitter Modes | 32.768 (33) kHz 8.192 (8) kHz |
32.768 (33) kHz 8.192 (8) kHz 512 Hz 640 Hz |
| Depth Range | Line 0.3m to 3m / 1ft to 10 ft Sonde 0.3m to 3m / 1ft to 10 ft |
Line 0.3m to 3m / 1ft to 10ft Sonde 0.3m to 9.99m / 1 ft to 32.77 ft |
| Depth Accuracy* | 10% | 10% |
| Environmental Standard | IP54 | IP54 |
| Operating Temperature | -20° C to +50° C -4° F to +122° F |
-20° C to +50° C -4° F to +122° F |
| Battery | 6 x LR6 (AA) Alkaline | 6 x LR6 (AA) Alkaline |
| Battery operating time** | 15 h | 15 h |
| Dimensions (HxWxD) | 760 x 250 y 85mm (30 x 10 x 3.4 inches) |
760 x 250 y 85mm (30 x 10 x 3.4 inches) |
| Weight with batteries | 2.7Kg 5.95 lbs |
2.7Kg 5.95 lbs |
| * Depth to an undistorted signal ** Constant use at 20°C/68°F |
||
| SKU | 2901035 |
|---|---|
| MPN | 872938 |
| Package Includes | N/A |
