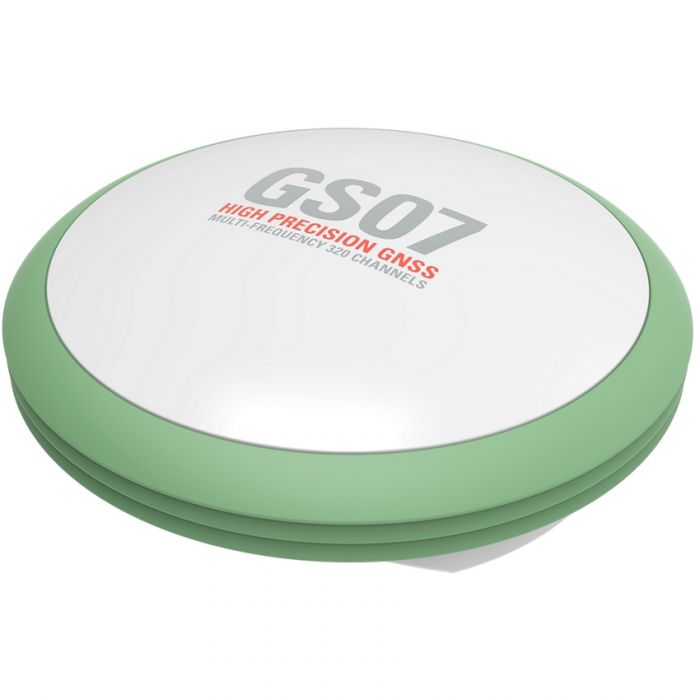

Leica GNSS GS07 Smart Antenna

SKU: LeicaGS07

Leica GNSS GS07 Smart Antenna

Our light weight, most compact antenna yet

The GS07 is Leica Geosystems’ new mid-range GNSS smart antenna. It is the light weight, yet robust piece of equipment which comes with functionality focused on exactly what you need, with the highest quality levels one would expect from a premium Leica Geosystems GNSS portfolio.

The GS07 guarantees fast and reliable stake out and data capture combined in an easy-to-use rover with 320 channels, multi frequency and multi constellation. It also supports expansion of communication devices such as UHF radios which are fully integrated in the CS20. Through its connectivity to Leica Captivate field software and the Leica CS20 field controller, the GS07 delivers true Leica Geosystems quality.

Call or email for price

Tel: 01480 404888

Email: sales@sccssurvey.co.uk

Our light weight, most compact antenna yet

The GS07 is Leica Geosystems’ new mid-range GNSS smart antenna. It is the light weight, yet robust piece of equipment which comes with functionality focused on exactly what you need, with the highest quality levels one would expect from a premium Leica Geosystems GNSS portfolio.

The GS07 guarantees fast and reliable stake out and data capture combined in an easy-to-use rover with 320 channels, multi frequency and multi constellation. It also supports expansion of communication devices such as UHF radios which are fully integrated in the CS20. Through its connectivity to Leica Captivate field software and the Leica CS20 field controller, the GS07 delivers true Leica Geosystems quality.

Credit Card Logos

Free Delivery

Send to a Colleague

Delivery and Returns

Follow us on LinkedIn

Price Match Promise

Delivery and Returns

Leica
Description

Engaging software

The GS07 GNSS RTK sensor combines seamlessly with the completely engaging Leica Captivate software for a powerfully immersive experience. Through the simplicity of touch, management of complex data is made extraordinarily enjoyable and actionable. Leica Captivate spans industries and applications with little more than a simple swipe, regardless of whether you work with GNSS, total stations or both.

Powerful handheld devices

Take your entire office on the go when you discover the power to overcome any environment from the palm of your hand. The Leica CS20 controller provides the ultimate in control and convenience with complete mobility. Touchscreen technology allows for comfortable and quick data processing while a stunning 3D view transforms your GNSS experience.

Infinite possibilities

While Captivate captures and models data in the field, Leica Infinity processes the information back in the office. A smooth data transfer ensures the project stays on track. Captivate and Infinity work in conjunction to join previous survey data and edit projects faster and more efficiently.

Leica Geosystems GNSS Comparison Chart
Leica GS07 Leica GS14 Leica GS16 Leica GS18 T Leica GS10 Leica GS25
Leica GS07 Leica GS14 Leica GS16 Leica GS18 T Leica GS10 Leica GS25
Signal tracking Multi-frequency Dual-frequency Multi-frequency Multi-frequency Multi-frequency Multi-frequency
GPS
GLONASS
Galileo
BeiDou
QZSS
SBAS
SmartLink fill
SmartLink
Tilt compensation
Single baseline RTK Hz 10 mm + 1 ppmV 20 mm + 1 ppm Hz 8 mm + 1 ppmV 15 mm + 1 ppm Hz 8 mm + 1 ppmV 15 mm + 1 ppm Hz 8 mm + 1 ppmV 15 mm + 1 ppm Hz 8 mm + 1 ppmV 15 mm + 1 ppm Hz 8 mm + 1 ppmV 15 mm + 1 ppm
Network RTK Hz 10 mm + 0.5 ppmV 20 mm + 0.5 ppm Hz 8 mm + 0.5 ppmV 15 mm + 0.5 ppm Hz 8 mm + 0.5 ppmV 15 mm + 0.5 ppm Hz 8 mm + 0.5 ppmV 15 mm + 0.5 ppm Hz 8 mm + 0.5 ppmV 15 mm + 0.5 ppm Hz 8 mm + 0.5 ppmV 15 mm + 0.5 ppm
Static (phase) with long observations Hz 3 mm + 0.5 ppmV 6 mm + 0.5 ppm Hz 3 mm + 0.1 ppmV 3.5 mm + 0.4 ppm Hz 3 mm + 0.1 ppmV 3.5 mm + 0.4 ppm Hz 3 mm + 0.1 ppmV 3.5 mm + 0.4 ppm Hz 3 mm + 0.1 ppmV 3.5 mm + 0.4 ppm Hz 3 mm + 0.1 ppmV 3.5 mm + 0.4 ppm
Static and rapid static (phase) Hz 5 mm + 0.5 ppmV 10 mm + 0.5 ppm Hz 3 mm + 0.5 ppmV 5 mm + 0.5 ppm Hz 3 mm + 0.5 ppmV 5 mm + 0.5 ppm Hz 3 mm + 0.5 ppmV 5 mm + 0.5 ppm Hz 3 mm + 0.5 ppmV 5 mm + 0.5 ppm Hz 3 mm + 0.5 ppmV 5 mm + 0.5 ppm
Reliability 99,95% 99,99% 99,99% 99,99% 99,99% 99,99%
5 Hz20 Hz positioning
Raw dataRINEX data loggingNMEA out
RTK reference station functionality
CellularUHF Radio (receive & transmit) modem Controller internal/Receive only 3G 3G 4G 3G 3G
Storage Controller internal MicroSD card MicroSD card SD Card SD Card SD Card
User interface (buttonsLEDsdisplay) 13 27 27 28 27 27
Power, Bluetooth®, USB, RS232
Event, PPS
Operating temperature -40°C to 65°C
IP68 proof against water, sand and dust
Weight (without battery) 0.60 kg 0.93 kg 0.93 kg 1.20 kg 1.20 kg 1.84 kg
