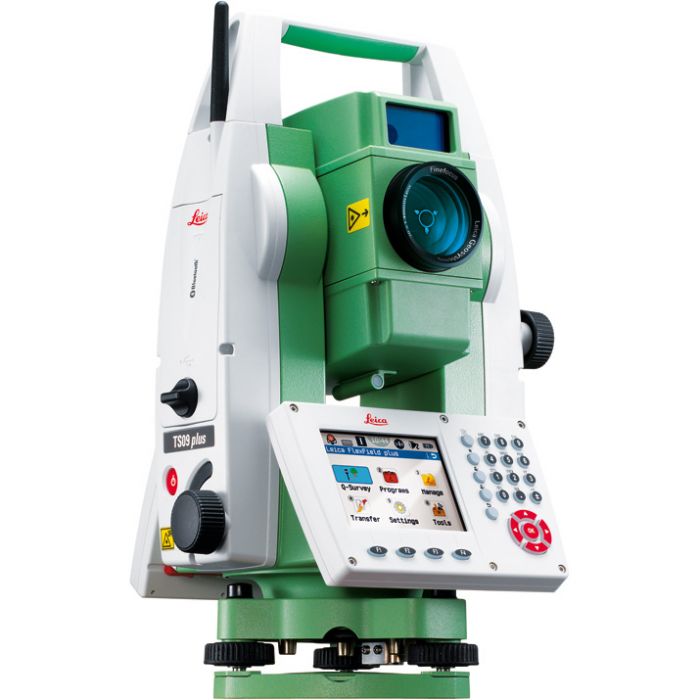

Leica FlexLine TS09plus Total Station

SKU: Leica FlexLine TS09plus Total Station

Leica FlexLine TS09plus Total Station

The Leica Flexline TS09plus Total Station continually delivers measurements which are extremely precise and accurate. Use a selection of EDM options for measuring to prisms or directly to objects without the need for a reflector. Specifically designed for applications of mid to high accuracy it comes with easy setup with a laser plummet and guided process at start-up. The ergonomic key layout and large display provides error-free data input and makes operation simple.

Features of the Leica Flexline TS09plus Total Station include a built-in easy to use alpha numerical keyboard for fast entry of numbers, special characters and numbers. This not only increases speed and productivity but also minimises errors.

The Flexline TS09plus allows for connections to any data collector via a cable free Bluetooth connection. It is suitable with Leica Viva CS10 or Leica CS15 using SmartWorks software. The USB functionality gives transfer flexibility of data files including GSI, ASCII, DXF, CSV and more. The Flexline TS09plus also has a large internal memory and can store up to 100000 fix points and 60000 measurements. The New FlexField plus software and colour touch screen makes operation quick and easy through graphical guidance.

This Total Station uses Lithium-Ion batteries for long life, fast charging and an operation time of 30 hrs. The Flexline weighs 5.1kg including the GEB211 battery and tribrach. Its container is light, tough and keeps the instrument with all the accessories dust and waterproof.

The Leica Flexline TS09plus comes with Leica Geosystems mySecurity which locks the instrument and disables it so it can no longer be used should it be stolen.

Each package includes

  • TS09 plus total station with reflectorless R1000 EDM
  • GDF111-1 Tribrach
  • GEB211 Battery (x2)
  • GKL211 Charger
  • GEV189 Data-Transfer-Cable
  • GMP111-0 1 Miniprism Set
  • User Manual
  • Carry Case
  • Calibration Certificate - 1 Year
  • 1yr Warranty and Basic Customer Care Package
Leica Flexline TS09 plus R500 - 5" Package
(Leica Flexline TS09 plus R500 - 5" Package)
£10,800.00 inc VAT £9,000.00 excl VAT
Leica Flexline TS09 plus R500 - 3" Package
(Leica Flexline TS09 plus R500 - 3" Package)
£11,880.00 inc VAT £9,900.00 excl VAT
Leica Flexline TS09 plus R500 - 2" Package
(Leica Flexline TS09 plus R500 - 2" Package)
£13,056.00 inc VAT £10,880.00 excl VAT
Leica Flexline TS09 plus R500 - 1" Package
(Leica Flexline TS09 plus R500 - 1" Package)
£14,496.00 inc VAT £12,080.00 excl VAT
Leica Flexline TS09 plus R1000 - 5" Package
(Leica Flexline TS09 plus R1000 - 5" Package)
£12,096.00 inc VAT £10,080.00 excl VAT
Leica Flexline TS09 plus R1000 - 3" Package
(Leica Flexline TS09 plus R1000 - 3" Package)
£13,176.00 inc VAT £10,980.00 excl VAT
Leica Flexline TS09 plus R1000 - 2" Package
(Leica Flexline TS09 plus R1000 - 2" Package)
£15,456.00 inc VAT £12,880.00 excl VAT
Leica Flexline TS09 plus R1000 - 1" Package
(Leica Flexline TS09 plus R1000 - 1" Package)
£15,939.22 inc VAT £13,282.68 excl VAT
Leica Flexline TS09 plus R500 - 5" Package
(Leica Flexline TS09 plus R500 - 5" Package)
£10,800.00 inc VAT £9,000.00 excl VAT
Leica Flexline TS09 plus R500 - 3" Package
(Leica Flexline TS09 plus R500 - 3" Package)
£11,880.00 inc VAT £9,900.00 excl VAT
Leica Flexline TS09 plus R500 - 2" Package
(Leica Flexline TS09 plus R500 - 2" Package)
£13,056.00 inc VAT £10,880.00 excl VAT
Leica Flexline TS09 plus R500 - 1" Package
(Leica Flexline TS09 plus R500 - 1" Package)
£14,496.00 inc VAT £12,080.00 excl VAT
Leica Flexline TS09 plus R1000 - 5" Package
(Leica Flexline TS09 plus R1000 - 5" Package)
£12,096.00 inc VAT £10,080.00 excl VAT
Leica Flexline TS09 plus R1000 - 3" Package
(Leica Flexline TS09 plus R1000 - 3" Package)
£13,176.00 inc VAT £10,980.00 excl VAT
Leica Flexline TS09 plus R1000 - 2" Package
(Leica Flexline TS09 plus R1000 - 2" Package)
£15,456.00 inc VAT £12,880.00 excl VAT
Leica Flexline TS09 plus R1000 - 1" Package
(Leica Flexline TS09 plus R1000 - 1" Package)
£15,939.22 inc VAT £13,282.68 excl VAT
SCCS
Order by phone: 01480 404888
Call our experienced sales team to order or discuss any products.

The Leica Flexline TS09plus Total Station continually delivers measurements which are extremely precise and accurate. Use a selection of EDM options for measuring to prisms or directly to objects without the need for a reflector. Specifically designed for applications of mid to high accuracy it comes with easy setup with a laser plummet and guided process at start-up. The ergonomic key layout and large display provides error-free data input and makes operation simple.

Features of the Leica Flexline TS09plus Total Station include a built-in easy to use alpha numerical keyboard for fast entry of numbers, special characters and numbers. This not only increases speed and productivity but also minimises errors.

The Flexline TS09plus allows for connections to any data collector via a cable free Bluetooth connection. It is suitable with Leica Viva CS10 or Leica CS15 using SmartWorks software. The USB functionality gives transfer flexibility of data files including GSI, ASCII, DXF, CSV and more. The Flexline TS09plus also has a large internal memory and can store up to 100000 fix points and 60000 measurements. The New FlexField plus software and colour touch screen makes operation quick and easy through graphical guidance.

This Total Station uses Lithium-Ion batteries for long life, fast charging and an operation time of 30 hrs. The Flexline weighs 5.1kg including the GEB211 battery and tribrach. Its container is light, tough and keeps the instrument with all the accessories dust and waterproof.

The Leica Flexline TS09plus comes with Leica Geosystems mySecurity which locks the instrument and disables it so it can no longer be used should it be stolen.

Each package includes

  • TS09 plus total station with reflectorless R1000 EDM
  • GDF111-1 Tribrach
  • GEB211 Battery (x2)
  • GKL211 Charger
  • GEV189 Data-Transfer-Cable
  • GMP111-0 1 Miniprism Set
  • User Manual
  • Carry Case
  • Calibration Certificate - 1 Year
  • 1yr Warranty and Basic Customer Care Package

Credit Card Logos

Free Delivery

Send to a Colleague

Delivery and Returns

Follow us on LinkedIn

Price Match Promise

Delivery and Returns

Leica
Description

Leica FlexLine TS06plus specifications
Measurement - Angle
Method Absolute, diametrical, continuous
Resolution Display 0.1"
Compensation Quadruple Axis
Accuracy - Compensator Setting 0.5" / 0.5" / 1" / 1.5" / 2"
Distance Measurement using Reflector
Range - Round prism

3500 metres

Range - Reflective tape > 500 metres
> 1000 metres
Range - Prism-Long
> 10000 metres
Measurement Time (typical) 1second
Distance Measurement no using Reflector
Range - PinPoint R500 / R1000 > 500metres / > 1000metres
Accuracy 2mm + 2ppm
Laser dot size At 30metres, approximatley 7 x 10millimetres
Data Communication / Storage
Built in memory 100000 fixpoints,
60000 measurements
Interfaces

USB Type A & mini B
Bluetooth

Guide Light
Range Working
5metres to 150metres
Accuracy Positioning 5centimetres at 100metres
Telescope
Magnification 30x
Resolving power 3"
Field of View 1° 30"
2.7metres at 100metres
Focusing range 1.7metres to infinity
Reticle Illuminated display and 10 levels of brightness
Keyboard & Display
Display and Keyboard Full Alpha numeric with colour and touch screen, Q-VGA, graphics, 5 brightness levels and display illumination,
Laserplummet
Type Laser point 5 levels of brightness
Centering accuracy 1.5 mm at 1.5metres
Battery
Type Lithium-Ion
Operating time Approximatley 30hrs
Weight
Total station 5.1 kg
Environmental
Operating Temperatue –20° C to +50° C
Arctic Type – 35°C to 50°C
Water / Dust IP55 Rating
Additional Information
SKU Leica FlexLine TS09plus Total Station
