IDS GeoRadar - Stream C

SKU: StreamC
NEW

IDS GeoRadar - Stream C

The compact array solution for accurate 3D utility mapping.

High quality, High productivity and Simple to Use compact radar system for real time underground surveys.

Stream C is the compact array solution for real-time 3D mapping of underground utilities and features. Thanks to increased level of accuracy provided by a massive antenna array, Stream C is able to automatically detect pipes and cables.

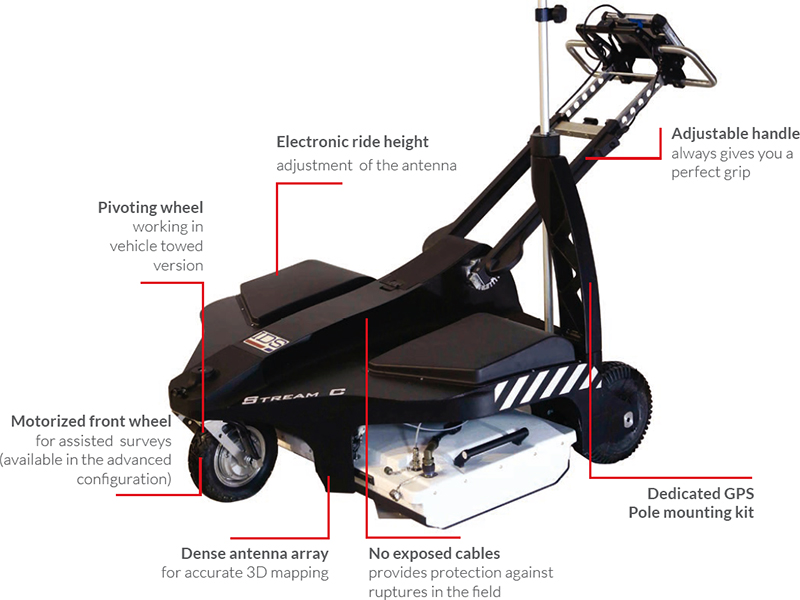

Daily use of Stream C is aided by ergonomic features including electronic ride height adjustment, options to tow manually or with a small vehicle and a motor assisted drive wheel.

Availability: In stock

Call or email for price

Tel: 01480 404888

Email: sales@sccssurvey.co.uk

The compact array solution for accurate 3D utility mapping.

High quality, High productivity and Simple to Use compact radar system for real time underground surveys.

Stream C is the compact array solution for real-time 3D mapping of underground utilities and features. Thanks to increased level of accuracy provided by a massive antenna array, Stream C is able to automatically detect pipes and cables.

Daily use of Stream C is aided by ergonomic features including electronic ride height adjustment, options to tow manually or with a small vehicle and a motor assisted drive wheel.

Credit Card Logos

Free Delivery

Price Match Promise

Delivery and Returns

Description
No

STREAM C BENEFITS

  • High Productivity: surveys only need to be performed in one direction to ensure optimal detection for both longitudinal and transversal pipes.
  • No advanced training needed: the system automatically detects and locates the position of pipes in real time and displays them on screen.
  • Reduced user fatigue: thanks to electronic ride height adjustment and a motor assisted drive wheel.
  • Facilitates large surveys: the system can be towed manually or with a small vehicle, increasing the acquisition speed (up to 6 km/h).


STREAM C FEATURES

  • Massive array of 34 antennas in two polarizations: this enables an accurate 3D reconstruction of the underground utility network to be created in a single scan.
  • Automatic Pipe Detection (APD): real-time automatic detection of buried pipes and cables
  • Compact size: Stream C’s small dimensions enable it to survey areas inaccessible to larger array systems while maintaining the same accuracy.
  • Robust construction: built to the highest standards and with hardwearing materials so that it can be used in harsh, demanding environments.
  • 3D radar tomography: real-time tomography on a GPS or total station assisted cartographic background. • Professional subsurface survey: pipes, cables and buried objects can be automatically transferred to CAD and GIS formats allowing a complete subsurface GIS based digital map to be quickly produced.
Additional Information
SKU StreamC
Package Includes N/A
